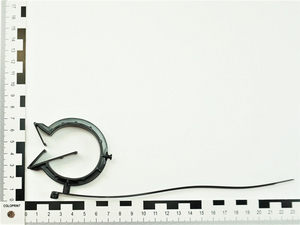

Fixing tie with pipe/tube holder, inside serrated, ∅2.0-50.0mm, black, 250pcs.
Art.-No. 156-00131 | T50SMVCOC39-45-PA66HS/PA66HIRHS-BK |  Details

    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads CAD-Download Datasheet
    Cable Tie Polyamide 6.6, heat stabilised (PA66HS)
    Colour Black (BK)
    Fixation Method Omega Clip
    Foot Part Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    Identification Plate Position none
    Key product features lockable, rotatable
    Local order number T50SMVCOC39-45-MC5-BK-G1
    Material Polyamide 6.6, heat stabilised (PA66HS), Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    PART DESCRIPTION T50SMVCOC39-45-PA66HS/PA66HIRHS-BK

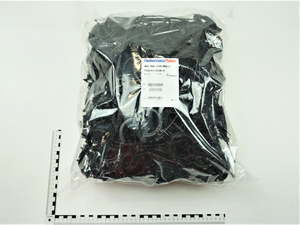

    Pack Cont. 250pcs.
    Package Content packed in pcs.
    Product Group 2-piece fixing ties with pipe clip
    Type T50SMVCOC39-45
    Attach to Ø 39.0 - 45.0
    Bundle Diameter max (metric) 50.0mm
    Bundle ∅ 2.0-50.0mm
    Bundle ∅ min. 2.0mm
    Length (L) 210.0mm
    Min.Tensile Strength 222N
    Thickness (T) 1.35mm
    Weight/Unit 0.007775kg
    Width (W) 4.7mm
    ELV compliant Dir. Art. 4 (2) YES
    Hazardous Goods No
    ROHS compliant Yes
    Specifications
    Country of Origin FR
    Customs Number 39269097
    GTIN-13 / EAN 4031026262581
    Packaging 1 - Height (m) 0.2m
    Packaging 1 - Length (m) 0.47m
    Packaging 1 - Qty 250
    Packaging 1 - Type Bag
    Packaging 1 - Volume (m³) 0.05123m³
    Packaging 1 - Weight (kg) 1.987347kg
    Packaging 1 - Width (m) 0.545m
    Packaging 2 - Type Carton
    Packaging 3 - Height (m) 0.368m
    Packaging 3 - Length (m) 0.584m
    Packaging 3 - Qty 1000
    Packaging 3 - Type Box
    Packaging 3 - Volume (m³) 0.083m³
    Packaging 3 - Weight (kg) 8.769388kg
    Packaging 3 - Width (m) 0.386m
    Packaging 4 - Height (m) 1.248m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 12000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.198m³
    Packaging 4 - Weight (kg) 126.252kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121702
