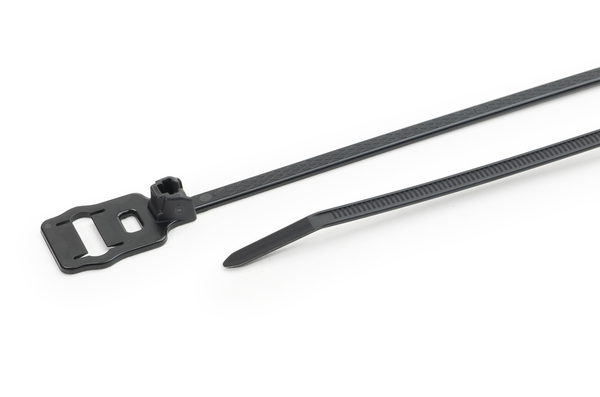

Fixing tie for stud, outside serrated, ∅1.5-35.0mm, black, 500pcs.
Art.-No. 157-04018 | T50SOSASSO12.5AP5E-PA66HS-BK |  Details

    • One-piece fixing ties
    • High specification materials
    • Superior design
    • Suitable for complex applications
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads Datasheet
    Application Primarily designed for use in the automotive industry, these parts can be used in a wide variety of applications where weld studs or ISO bolts are used and cables need to be bundled and secured.
    Colour Black (BK)
    Fixation Method Weld Stud Fixing
    Identification Plate Position none
    Material Polyamide 6.6, heat stabilised (PA66HS)
    PART DESCRIPTION T50SOSASSO12.5AP5E-PA66HS-BK
    Pack Cont. 500pcs.
    Package Content packed in Bag
    Product Group 1-piece fixing ties for weld studs
    Releasable Closure (Yes/No) No
    Tie Closure plastic pawl
    Type T50SOSASSO12.5AP5E
    Bundle Diameter max (metric) 35.0mm
    Bundle ∅ 1.5-35.0mm
    Bundle ∅ min. 1.5mm
    Height (H) 6.9mm
    Length (L) 171.8mm
    Length (L2) 28.6mm
    Min.Tensile Strength 225N
    Stud ∅ M5, M6, T5, T6
    Thickness (T) 1.3mm
    Weight/Unit 0.001462kg
    Width (W) 4.6mm
    Width (W2) 19.2mm
    ELV compliant Dir. Art. 4 (2) YES
    Flammability UL 94 V2
    Hazardous Goods No
    Operating Temperature -40 °C to +105 °C, (+125 °C, 5000 h; +140 °C, 100 h)
    ROHS compliant Yes
    Specifications
    Country of Origin DE
    Customs Number 39269097
    GTIN-13 / EAN 4031026666518
    Packaging 1 - Height (m) 0.05m
    Packaging 1 - Length (m) 0.4m
    Packaging 1 - Qty 500
    Packaging 1 - Type Bag
    Packaging 1 - Volume (m³) 0.0068m³
    Packaging 1 - Weight (kg) 0.760135kg
    Packaging 1 - Width (m) 0.34m
    Packaging 3 - Height (m) 0.538m
    Packaging 3 - Length (m) 0.584m
    Packaging 3 - Qty 9000
    Packaging 3 - Type Box
    Packaging 3 - Volume (m³) 0.1213m³
    Packaging 3 - Weight (kg) 14.78243kg
    Packaging 3 - Width (m) 0.386m
    Packaging 4 - Height (m) 1.22m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 72000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.171m³
    Packaging 4 - Weight (kg) 139.24kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121717
