24/11/2024

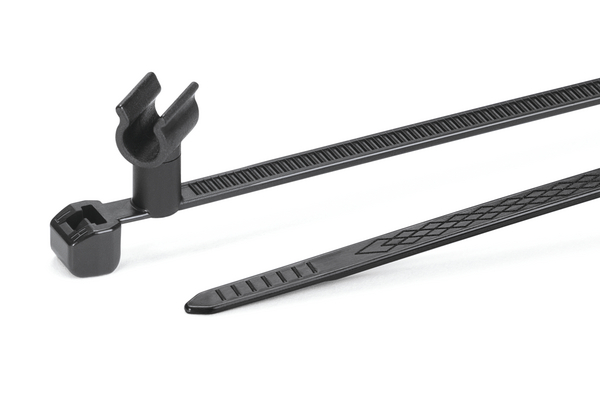

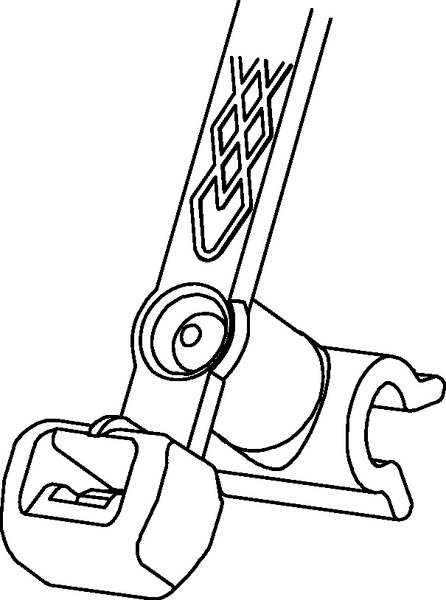

Fixing tie with pipe/tube holder, outside serrated, ∅2-35mm, black, 500pcs.
Art.-No. 156-03033 | T50SOSASVC3.5-PA66HIRHS-BK Details

Request your individual offer now

Colour Black (BK)
Fixation Method Omega Clip
Identification Plate Position none
Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
PART DESCRIPTION T50SOSASVC3.5-PA66HIRHS-BK
Pack Cont. 500pcs.
Package Content packed in Bag
Product Group 2-piece fixing ties with pipe clip
Type T50SOSASVC3.5
Variant Outside Serrated with AntiSlip Engraving
Attach to Ø 3.45 - 3.55
Bundle Diameter max (metric) 35mm
Bundle ∅ 2-35mm
Bundle ∅ min. 2mm
Length (L) 155mm
Min.Tensile Strength 200N
Weight/Unit 0.0007kg
Width (W) 4.6mm
ELV compliant Dir. Art. 4 (2) YES
Hazardous Goods No
ROHS compliant Yes
Specifications
Country of Origin PL
Customs Number 39269097
GTIN-13 / EAN 4031026645759
Packaging 1 - Height (m) 0.085m
Packaging 1 - Length (m) 0.395m
Packaging 1 - Qty 500
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.01511
Packaging 1 - Weight (kg) 0.379135kg
Packaging 1 - Width (m) 0.45m
Packaging 3 - Height (m) 0.368m
Packaging 3 - Length (m) 0.584m
Packaging 3 - Qty 8000
Packaging 3 - Type Box
Packaging 3 - Volume (m³) 0.083
Packaging 3 - Weight (kg) 6.88616kg
Packaging 3 - Width (m) 0.386m
Packaging 4 - Height (m) 1.248m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 96000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.198
Packaging 4 - Weight (kg) 103.608kg
Packaging 4 - Width (m) 0.8m
ETIM 7.0 Key EC000046
ETIM 8.0 Key EC000046
ETIM 9.0 Key EC000046
UNSPSC Key 39121702
