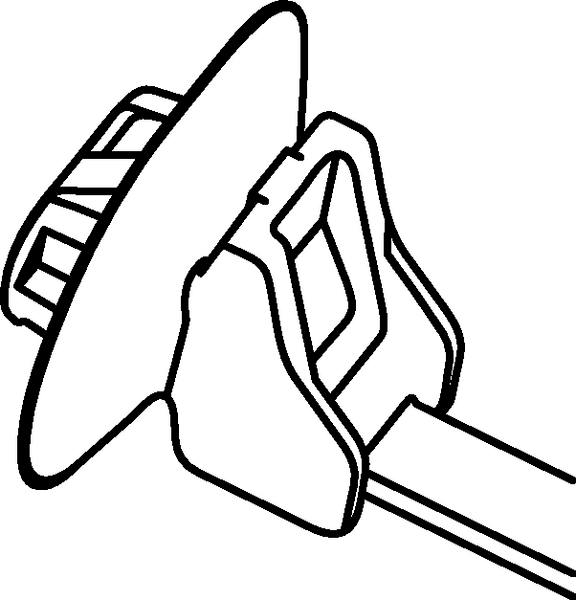

Fixing tie for hole (oval), outside serrated, ∅1.5-35.0mm, black, 1000pcs.
Art.-No. 126-00141 | T50SOSKSFT62x122PT0.7-1.3-PA66HS-BK |  Details

    • Easy to install without the need for a tool
    • Arrowhead simply locks into place
    • Disc adjusts tie for pressures from various directions and minimises access of dust and dirt
    • Cable tie head always situated in a defined position
    • Versions for oval holes feature anti-twist protection
    Show more
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads Datasheet
    Application With a diverse range of fixing possibilities are ideal for use in many different industries, including automotive, aerospace and panel building.
    Colour Black (BK)
    Fixation Method Arrowhead for oval holes
    Identification Plate Position none
    Local order number T50SOSKSFT62x122PT0.7-1.3_HS_M1
    Material Polyamide 6.6, heat stabilised (PA66HS)
    PART DESCRIPTION T50SOSKSFT62x122PT0.7-1.3-PA66HS-BK
    Pack Cont. 1000pcs.
    Package Content packed in Bag
    Product Family for oval holes
    Product Group 1-piece fixing ties with arrowhead, with disc
    Releasable Closure (Yes/No) No
    Tie Closure plastic pawl
    Type T50SOSKSFT62x122PT0.7-1.3
    Variant Outside Serrated
    Bundle Diameter max (metric) 35.0mm
    Bundle ∅ 1.5-35.0mm
    Bundle ∅ min. 1.5mm
    Disc ∅ 16.0 x 21.0
    Fixing Hole Shape Oval
    Length (L) 157.8mm
    Min.Tensile Strength 225N
    Weight/Unit 0.001648kg
    Width (W) 4.6mm
    for Hole ∅ (FH) 6.2 x 12.2 mm
    for Panel Thickness min - max 0.7 - 1.3 mm
    ELV compliant Dir. Art. 4 (2) YES
    Hazardous Goods No
    Operating Temperature -40 °C to +105 °C, (+105 °C for 500 h)
    ROHS compliant Yes
    Specifications
    Country of Origin DE
    Customs Number 39269097
    GTIN-13 / EAN 4031026411187
    Packaging 1 - Height (m) 0.095m
    Packaging 1 - Length (m) 0.565m
    Packaging 1 - Qty 1000
    Packaging 1 - Type Bag
    Packaging 1 - Volume (m³) 0.02415m³
    Packaging 1 - Weight (kg) 1.695kg
    Packaging 1 - Width (m) 0.45m
    Packaging 3 - Height (m) 0.368m
    Packaging 3 - Length (m) 0.584m
    Packaging 3 - Qty 4000
    Packaging 3 - Type Box
    Packaging 3 - Volume (m³) 0.083m³
    Packaging 3 - Weight (kg) 7.6kg
    Packaging 3 - Width (m) 0.386m
    Packaging 4 - Height (m) 1.248m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 48000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.198m³
    Packaging 4 - Weight (kg) 112.2kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121703
    Show all
    Show all
    Cable holder Cable holder

    Cable holder

    Looking for a secure way to fasten cables or wires? Our plastic cable holders are easy to install and suitable for almost any application. Learn more...

    Cable holder >
