Fixing tie for stud, outside serrated, ∅1.0-35.0mm, black, 500pcs.
Art.-No. 155-05701
| T50SOSSBH5E-PA66HS-BK
|
Details
- Cable tie head always situated in defined position
- Easy to assemble without the need for a tool

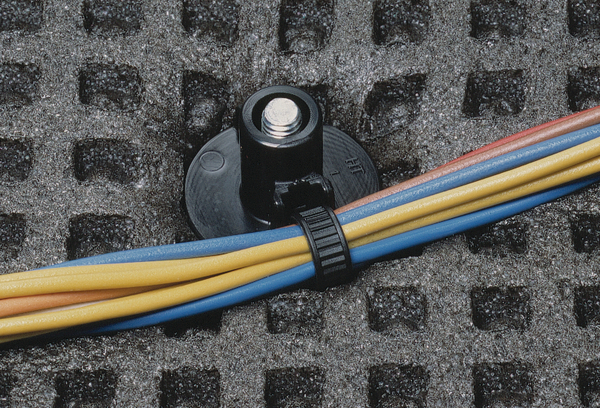

- Can retain insulation materials while fixing a cable bundle
Request your individual offer now
Request quote
More products in this product group:
| Application | Primarily designed for use in the automotive industry, these parts can be used in a wide variety of applications where 5mm/8mm weld studs or 5mm/8mm ISO bolts are used and cables need to be bundled and secured. (WS series,T120RSM, DCT9 and DCT 11 are for 1/4" bolts) |
| Colour | Black (BK) |
| Fixation Method | Weld Stud Fixing |
| Identification Plate Position | none |
| Local order number | 155-05701.HB6P |
| Material | Polyamide 6.6, heat stabilised (PA66HS) |
| PART DESCRIPTION | T50SOSSBH5E-PA66HS-BK |
| Pack Cont. | 500pcs. |
| Package Content packed in | Bag |
| Product Family | With plate to fix isolation material |
| Product Group | 1-Piece Fixing Ties for Weld Studs |
| Releasable Closure (Yes/No) | No |
| Short Description | 1-Piece Fixing Tie for Weld Studs PA66HS 165x4.6 black |
| Tie Closure | plastic pawl |
| Type | T50SOSSBH5E |
| Variant | Outside Serrated |
Download
|
|
|
| Country of Origin | GB |
| Customs Number | 39269097 |
| GTIN-13 / EAN | 4031026212746 |
| Packaging 1 - Height (m) | 0.11m |
| Packaging 1 - Length (m) | 0.26m |
| Packaging 1 - Qty | 500 |
| Packaging 1 - Type | Bag |
| Packaging 1 - Volume (m³) | 0.01144m³ |
| Packaging 1 - Weight (kg) | 1.4235kg |
| Packaging 1 - Width (m) | 0.4m |
| Packaging 3 - Height (m) | 0.364m |
| Packaging 3 - Length (m) | 0.563m |
| Packaging 3 - Qty | 3000 |
| Packaging 3 - Type | Box |
| Packaging 3 - Volume (m³) | 0.0777m³ |
| Packaging 3 - Weight (kg) | 9.502kg |
| Packaging 3 - Width (m) | 0.379m |
| Packaging 4 - Height (m) | 1.236m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 36000 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.187m³ |
| Packaging 4 - Weight (kg) | 135.024kg |
| Packaging 4 - Width (m) | 0.8m |
