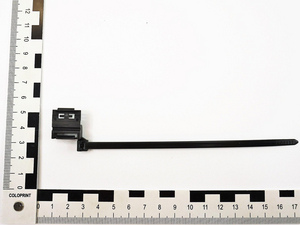

Fixing tie for cable bundles, outside serrated, ⌀1.6-35.0mm, black, 500pcs.
Art.-No. 148-00090
| T50SOSWB1.8E-PA66HS-BK
|
Copied
- Cable tie head always in defined position
- Easy to close by simply pressing the cover
- Firm fit around wires
- Suitable for post-installation of bundles
- Available in a range of sizes
Request your individual offer now
Request quote
More products in this product group:
| Application | Cable tie head always in defined position |
| Colour | Black (BK) |
| Identification Plate Position | none |
| Key product features | lockable |
| Local order number | T50SOSWB1.8E_PA66HS_D1 |
| Material | Polyamide 6.6, heat stabilised (PA66HS) |
| PART DESCRIPTION | T50SOSWB1.8E-PA66HS-BK |

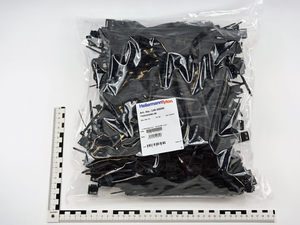

| Pack Cont. | 500pcs. |
| Package Content packed in | Bag |
| Product Family | for post-installation of bundles |
| Product Group | 1-piece fixing ties with wire clip |
| Releasable Closure (Yes/No) | No |
| Short Description | Fixing ties Fixing ties with wire clip |
| Tie Closure | plastic pawl |
| Type | T50SOSWB1.8E |
| ⌀ D (imperial) | 0.07" |
| Attach to ⌀ | 1.8 |
| Attach to Diameter | 0.07 " |
| Bundle ⌀ | 1.6-35.0mm |
| Bundle ⌀ min. | 1.6mm |
| Bundle Diameter max (metric) | 35.0mm |
| Length (L) | 150.0mm |
| Min.Tensile Strength | 225N |
| Nominal ⌀ | 1.8mm |
| Nominal ⌀ (imperial) | 0.06" |
| Thickness (T) | 1.3 |
| Weight/Unit | 0.00235kg |
| Width (W) | 4.6mm |
| Wire Size Range (in²) | 0.070 - 0.073" |
| Wire Size Range (mm²) | 1.78 - 1.86mm |
Download
|
|
|
| Country of Origin | DE |
| Customs Number | 39269097 |
| GTIN-13 / EAN | 4031026406046 |
| Packaging 1 - Height (m) | 0.08m |
| Packaging 1 - Length (m) | 0.395m |
| Packaging 1 - Qty | 500 |
| Packaging 1 - Type | Bag |
| Packaging 1 - Volume (m³) | 0.01422m³ |
| Packaging 1 - Weight (kg) | 1.204135kg |
| Packaging 1 - Width (m) | 0.45m |
| Packaging 3 - Height (m) | 0.368m |
| Packaging 3 - Length (m) | 0.584m |
| Packaging 3 - Qty | 4000 |
| Packaging 3 - Type | Box |
| Packaging 3 - Volume (m³) | 0.083m³ |
| Packaging 3 - Weight (kg) | 10.45308kg |
| Packaging 3 - Width (m) | 0.386m |
| Packaging 4 - Height (m) | 1.248m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 48000 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.198m³ |
| Packaging 4 - Weight (kg) | 146.424kg |
| Packaging 4 - Width (m) | 0.8m |
