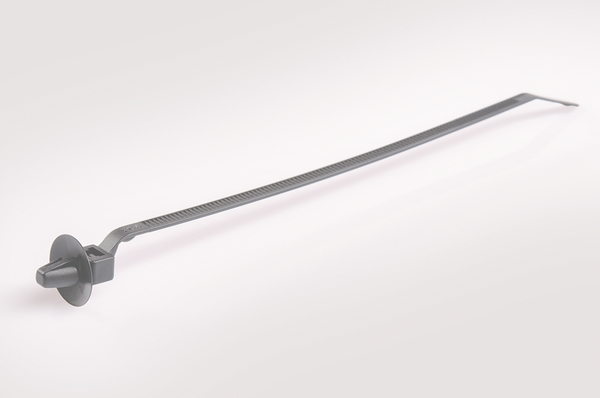

Fixing tie for hole (round), inside serrated, ∅1.5-31.0mm, natural, 100pcs.
Art.-No. 126-00031 | T50SST5-PA46-NA |  Details

The flexible 'discs' adjusts to take up variations in panel thickness - ensuring a firm fixing at all times.

    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads Datasheet
    Application With a diverse range of fixing possibilities this range of fixing ties are ideal for use in many different industries, like automotive, aerospace, white goods manufacture and panel building.
    Application Tool ProCut 9 no battery, MK3PNSP2, EVOcut, MK7P, MK10-SB, MK20, EVO7, EVO7SP, EVO7i, EVO7iSP, EVO9, EVO9SP, EVO9i, EVO9iSP
    Colour Natural (NA)
    Fixation Method arrowhead
    Identification Plate Position none
    Local order number T50SST5.RN3P
    Material Polyamide 4.6 (PA46)
    PART DESCRIPTION T50SST5-PA46-NA
    Pack Cont. 100pcs.
    Package Content packed in Bag
    Product Family for round holes
    Product Group 1-piece fixing ties with arrowhead, with disc
    Releasable Closure (Yes/No) No
    Tie Closure plastic pawl
    Type T50SST5
    Variant Inside Serrated
    Bundle Diameter max (metric) 31.0mm
    Bundle ∅ 1.5-31.0mm
    Bundle ∅ min. 1.5mm
    Disc ∅ 16.2mm
    Length (L) 170.0mm
    Min.Tensile Strength 225N
    Thickness (T) 1.2mm
    Width (W) 4.6mm
    for Hole ∅ (FH) 6.1 - 6.5 mm
    for Panel Thickness min - max 0.7 - 1.5 mm
    Flammability UL 94 V2
    Halogen-free Yes
    Limited Fire Hazard Yes
    Operating Temperature -40 °C to +150 °C
    ROHS compliant Yes
    Specifications
    Country of Origin GB
    GTIN-13 / EAN 4031026710617
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121703
