02/11/2024
For new projects please use part number 156-03032!

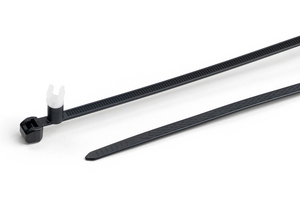

Fixing tie with pipe/tube holder, inside serrated, ∅2.0-35.0mm, black/natural, 500pcs.
Art.-No. 156-00318 | T50SVC4S-PA66HS/PP-BK/NA |  Details

T50SVC5 rotates in any direction.

    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads CAD-Download Datasheet
    Colour Black (BK), Natural (NA)
    Fixation Method Omega Clip
    Identification Plate Position none
    Internet Customer Notice For new projects please use part number 156-03032!
    Key product features lockable, rotatable
    Local order number T50SVC4S-MC10-BK-NA-D1
    Material Polyamide 6.6, heat stabilised (PA66HS), Polypropylene (PP)
    PART DESCRIPTION T50SVC4S-PA66HS/PP-BK/NA
    Pack Cont. 500pcs.
    Package Content packed in Bag
    Product Family for multiple routing
    Product Group 2-Piece fixing ties with pipe clip, twistable 360°
    Type T50SVC4S
    Attach to Diameter 0.15"-0.17"
    Attach to Ø 3.8 - 4.2
    Bundle Diameter max (metric) 35.0mm
    Bundle ∅ 2.0-35.0mm
    Bundle ∅ min. 2.0mm
    Length (L) 155mm
    Min.Tensile Strength 225N
    Weight/Unit 0.001394kg
    Width (W) 4.7mm
    for Hole ∅ (FH) 3.81 - 4.32 mm
    ELV compliant Dir. Art. 4 (2) YES
    Flammability UL 94 HB
    Hazardous Goods No
    Operating Temperature -40 °C to +85 °C
    ROHS compliant Yes
    Specifications
    Country of Origin FR
    Customs Number 39269097
    GTIN-13 / EAN 4031026285948
    Packaging 1 - Height (m) 0.2m
    Packaging 1 - Length (m) 0.395m
    Packaging 1 - Qty 500
    Packaging 1 - Type Bag
    Packaging 1 - Volume (m³) 0.03555m³
    Packaging 1 - Weight (kg) 0.726135kg
    Packaging 1 - Width (m) 0.45m
    Packaging 3 - Height (m) 0.368m
    Packaging 3 - Length (m) 0.584m
    Packaging 3 - Qty 7000
    Packaging 3 - Type Box
    Packaging 3 - Volume (m³) 0.083m³
    Packaging 3 - Weight (kg) 10.98589kg
    Packaging 3 - Width (m) 0.386m
    Packaging 4 - Height (m) 1.248m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 84000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.198m³
    Packaging 4 - Weight (kg) 152.808kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121703
