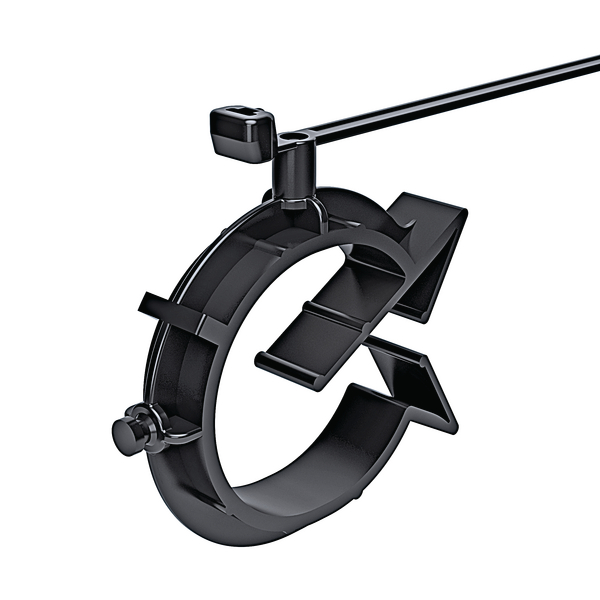

Fixing tie with pipe/tube holder, ∅2.0-35.0mm, black, 250pcs.
Art.-No. 156-01373
| T50SVCOC31-39-PA66HS/PA66HIRHS-BK
|
Details
This product is not available anymore.
Alternative product available
Request your individual offer now
Request quote
More products in this product group:

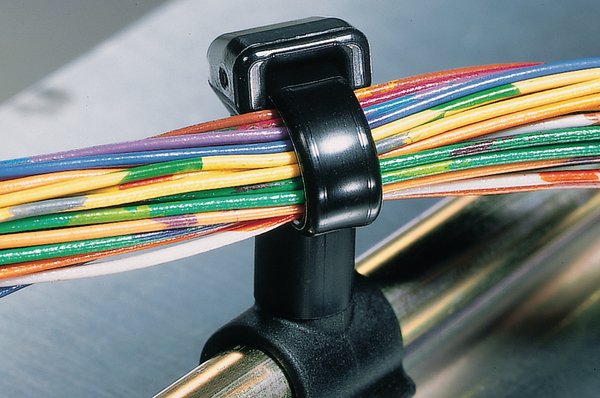

| Application | These inside serrated fixing ties provide the opportunity to attach a wire or hose to an existing harness. Offering a full 360 degrees rotation, the wire/hose can be oriented in any direction in relation to the main harness. |
| Colour | Black (BK) |
| Fixation Method | Omega Clip |
| Identification Plate Position | none |
| Key product features | rotatable, for multiple routing, removable |
| Local order number | T50SVCOC31-39 |
| Material | Polyamide 6.6, heat stabilised (PA66HS), Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS) |
| PART DESCRIPTION | T50SVCOC31-39-PA66HS/PA66HIRHS-BK |
| Pack Cont. | 250pcs. |
| Package Content packed in | Bag |
| Product Group | 2-Piece Fixing Ties with Pipe Clip, twistable 360° |
| Tie Closure | plastic pawl |
| Type | T50SVCOC31-39 |
Download
|
|
|
| Country of Origin | DE |
| Customs Number | 39269097 |
| GTIN-13 / EAN | 4031026501321 |
| Packaging 1 - Height (m) | 0.2m |
| Packaging 1 - Length (m) | 0.47m |
| Packaging 1 - Qty | 250 |
| Packaging 1 - Type | Bag |
| Packaging 1 - Volume (m³) | 0.05123m³ |
| Packaging 1 - Weight (kg) | 1.825097kg |
| Packaging 1 - Width (m) | 0.545m |
| Packaging 3 - Height (m) | 0.368m |
| Packaging 3 - Length (m) | 0.584m |
| Packaging 3 - Qty | 1000 |
| Packaging 3 - Type | Box |
| Packaging 3 - Volume (m³) | 0.083m³ |
| Packaging 3 - Weight (kg) | 8.120388kg |
| Packaging 3 - Width (m) | 0.386m |
| Packaging 4 - Height (m) | 1.248m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 12000 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.198m³ |
| Packaging 4 - Weight (kg) | 118.464kg |
| Packaging 4 - Width (m) | 0.8m |
