Fixing tie with pipe/tube holder, ∅2.0-35.0mm, black, 5000pcs.
Art.-No. 156-01237 | T50SVCOC9-11B-PA66HIRHS/PA66HS-BK | Details

Add to watchlist

Request your individual offer now

Request quote

Distributors near you

Downloads Datasheet

More products in this product group:

2-piece fixing ties with pipe clip >

Base Data

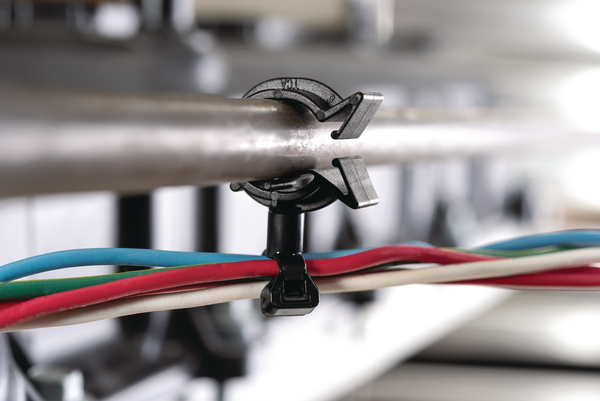

Application	These inside serrated fixing ties provide the opportunity to attach a wire or hose to an existing harness. Offering a full 360 degrees rotation, the wire/hose can be oriented in any direction in relation to the main harness.
Colour	Black (BK)
Fixation Method	Omega Clip
Identification Plate Position	none
Key product features	lockable, rotatable
Local order number	T50SVCOC9-11B-HS-BK
Material	Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS), Polyamide 6.6, heat stabilised (PA66HS)
PART DESCRIPTION	T50SVCOC9-11B-PA66HIRHS/PA66HS-BK
Pack Cont.	5000pcs.
Package Content packed in	Bag
Product Group	2-piece fixing ties with pipe clip
Type	T50SVCOC9-11B

Product Dimensions

Attach to Ø	9.0 - 11.0
Bundle Diameter max (metric)	35.0mm
Bundle ∅	2.0-35.0mm
Bundle ∅ min.	2.0mm
Length (L)	155.0mm
Min.Tensile Strength	222N
Thickness (T)	1.35mm
Width (W)	4.7mm

Downloads

Specifications

ROHS compliant	Yes
Specifications

Logistics and Packaging

Country of Origin	CN
GTIN-13 / EAN	4031026482293

More Information

ETIM 7.0 Key	EC000046
ETIM 8.0 Key	EC000046
ETIM 9.0 Key	EC000046
UNSPSC Key	39121703
