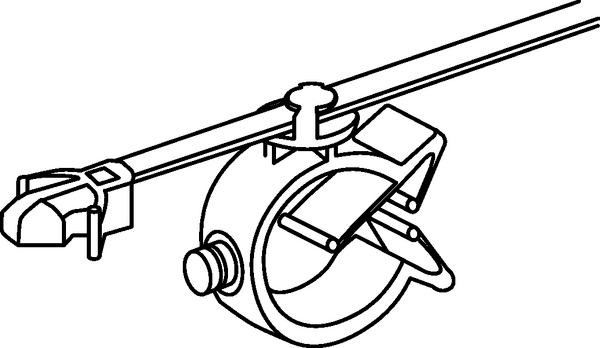

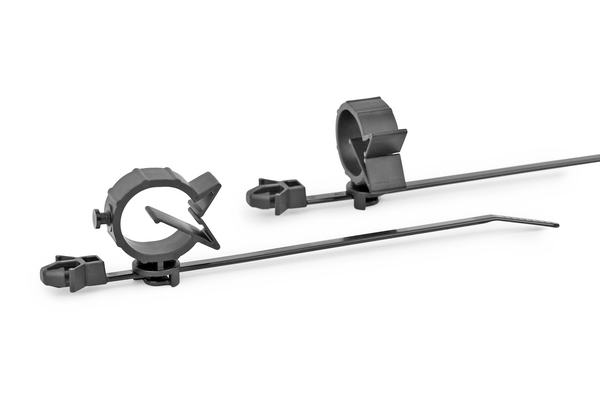

Fixing tie with pipe/tube holder, ∅5.0-27.0mm, black, 500pcs.
Art.-No. 156-01035 | T50XWPM7.0OC15-18CBTO-SD-PA66HS/PA66HIRHS-BK |  Details

    • Pre-assembled 2-piece fixing tie with Arrowhead foot part
    • Easy to assemble without the need for a tool
    • Arrowhead foot part can be used for a variety of panel thicknesses
    • For maintenance needs cables can be replaced easily
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads Datasheet
    Application Primarily designed for fixing cable harnesses in the automotive industry, their simplicity and ease of use has resulted in these parts being used in other industries, for example aviation, switch gear manufacturer, white goods manufacturer.
    Cable Tie Polyamide 6.6, heat stabilised (PA66HS)
    Colour Black (BK)
    Fixation Method Omega Clip
    Foot Part Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    Identification Plate Position none
    Key product features lockable, rotatable
    Local order number CN140AHOC15-18CBTOSD-HS-BK
    Material Polyamide 6.6, heat stabilised (PA66HS), Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    PART DESCRIPTION T50XWPM7.0OC15-18CBTO-SD-PA66HS/PA66HIRHS-BK
    Pack Cont. 500pcs.
    Package Content packed in Bag
    Product Family 2-Piece Fixing Ties with Arrowhead, with Wings and Pipe Clip, 90° rotatable
    Product Group 2-Piece Fixing Ties with Arrowhead, with Wings
    Type T50XWPM7.0OC15-18CBTO-SD
    Attach to Ø 15.0 - 18.0
    Bundle Diameter max (metric) 27.0mm
    Bundle ∅ 5.0-27.0mm
    Bundle ∅ min. 5.0mm
    Length (L) 140.0mm
    Min.Tensile Strength 225N
    Thickness (T) 1.3mm
    Width (W) 4.6mm
    for Hole ∅ (FH) 6.8 - 7.2 mm
    for Panel Thickness min - max 0.7 - 3 mm
    Operating Temperature -40 °C to +105 °C, (+105 °C for 500 h)
    ROHS compliant Yes
    Specifications
    Country of Origin CN
    GTIN-13 / EAN 4031026456539
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121702
    Cable holder Cable holder

    Cable holder

    Looking for a secure way to fasten cables or wires? Our plastic cable holders are easy to install and suitable for almost any application. Learn more...
