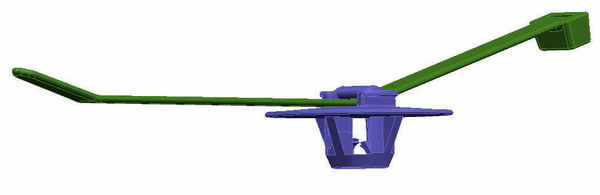

Fixing tie for stud, inside serrated, ∅1.0-78.0mm, black, 500pcs.
Art.-No. 150-92905
| T80ISBH5SD-PA66HS-BK
|
Details
- Pre-assembled with cable tie and weld stud mounting base
- Quick and easy installation
- Head rotates into perfect position for installation
- 'Soft-push' design for tool-free installation
- Mushroom-shaped SBH handles insulation or a sound-deadening blanket
- SBS ideal for installation prior to attaching cable (i.e. no lateral tolerances required)
- SB5 allow lateral tolerance for fixing point
Request your individual offer now
Request quote
More products in this product group:
| Application | Primarily designed for use in the automotive industry, these parts can be used in a wide variety of applications where 5mm weld studs or 5mm ISO bolts are used and cables need to be bundled and secured |
| Cable Tie | Polyamide 6.6, heat stabilised (PA66HS) |
| Colour | Black (BK) |
| Fixation Method | Weld Stud Fixing |
| Foot Part | Polyamide 6.6, heat stabilised (PA66HS) |
| Identification Plate Position | none |
| Material | Polyamide 6.6, heat stabilised (PA66HS) |
| PART DESCRIPTION | T80ISBH5SD-PA66HS-BK |
| Pack Cont. | 500pcs. |
| Package Content packed in | Bag |
| Product Group | 2-Piece Fixing Ties for Weld Studs, with Plate (for isolation material) |
| Tie Closure | plastic pawl |
| Type | T80ISBH5SD |
| Variant | Inside Serrated |
Download
|
|
|
| Country of Origin | PL |
| Customs Number | 39269097 |
| GTIN-13 / EAN | 4031026208183 |
| Packaging 1 - Height (m) | 0.2m |
| Packaging 1 - Length (m) | 0.47m |
| Packaging 1 - Qty | 500 |
| Packaging 1 - Type | Bag |
| Packaging 1 - Volume (m³) | 0.05123m³ |
| Packaging 1 - Weight (kg) | 1.967597kg |
| Packaging 1 - Width (m) | 0.545m |
| Packaging 2 - Type | Carton |
| Packaging 3 - Height (m) | 0.368m |
| Packaging 3 - Length (m) | 0.584m |
| Packaging 3 - Qty | 2500 |
| Packaging 3 - Type | Box |
| Packaging 3 - Volume (m³) | 0.083m³ |
| Packaging 3 - Weight (kg) | 10.657985kg |
| Packaging 3 - Width (m) | 0.386m |
| Packaging 4 - Height (m) | 1.248m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 30000 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.198m³ |
| Packaging 4 - Weight (kg) | 148.92kg |
| Packaging 4 - Width (m) | 0.8m |
