22/12/2024

Fixing tie for hole (round), ∅59.0mm, black, 100pcs.
Art.-No. 126-00020 | WPT230-PA66HIR-BK |  Details

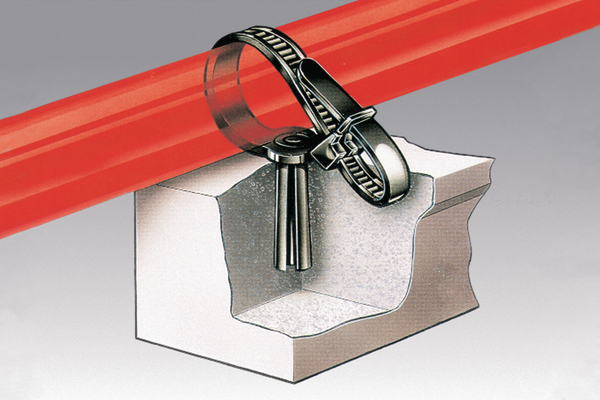

Wall plug tie in application.

    • One-piece for fixing to brick, cement or wood
    • Practical for the construction industry
    • Time saving and versatile
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads CAD-Download Datasheet
    Application Simply drill an 8mm hole and knock in the peg. Used to fasten cables, pipes or hoses in place.
    Colour Black (BK)
    Fixation Method Rivet Fixing
    Identification Plate Position none
    Local order number WPT230.IB3B
    Material Polyamide 6.6, high impact modified (PA66HIR)
    PART DESCRIPTION WPT230-PA66HIR-BK
    Pack Cont. 100pcs.
    Package Content packed in Bag
    Product Family WPT230
    Product Group 1-Piece Fixing Ties with peg
    Releasable Closure (Yes/No) No
    Short Description 1-Piece fixing tie 230x8 mm, with peg, PA66HIR, black
    Tie Closure plastic pawl
    Type WPT230
    Bundle Diameter max (metric) 59.0mm
    Bundle ∅ 59.0mm
    Length (L) 230mm
    Weight/Unit 0.0043kg
    Width (W) 8.0mm
    for Hole ∅ (FH) 8.0 mm
    ELV compliant Dir. Art. 4 (2) YES
    Flammability UL 94 HB
    Hazardous Goods No
    Operating Temperature -40 °C to +80 °C
    ROHS compliant Yes
    Specifications
    Country of Origin GB
    Customs Number 39269097
    GTIN-13 / EAN 5022660021510
    Packaging 1 - Height (m) 0.3m
    Packaging 1 - Length (m) 0.625m
    Packaging 1 - Qty 100
    Packaging 1 - Type Bag
    Packaging 1 - Volume (m³) 0.0825m³
    Packaging 1 - Weight (kg) 0.483478kg
    Packaging 1 - Width (m) 0.44m
    Packaging 3 - Height (m) 0.368m
    Packaging 3 - Length (m) 0.584m
    Packaging 3 - Qty 800
    Packaging 3 - Type Box
    Packaging 3 - Volume (m³) 0.083m³
    Packaging 3 - Weight (kg) 4.687824kg
    Packaging 3 - Width (m) 0.386m
    Packaging 4 - Height (m) 1.248m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 9600
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.198m³
    Packaging 4 - Weight (kg) 77.208kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121703
