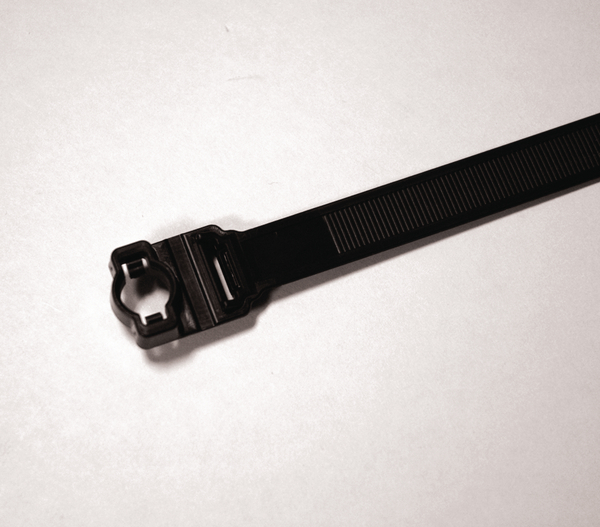

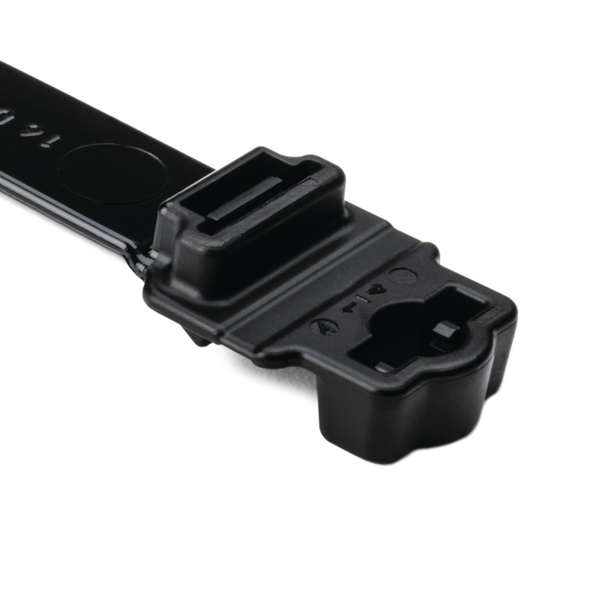

Fixing tie for stud, inside serrated, ∅9.5-82.5mm, black, 300pcs.
Art.-No. 157-00401
| WSI250-PA66HIRHSUV-BK
|
Details
- One-piece fixing ties
- High specification materials
- Superior design
- Suitable for complex applications
Request your individual offer now
Request quote
More products in this product group:

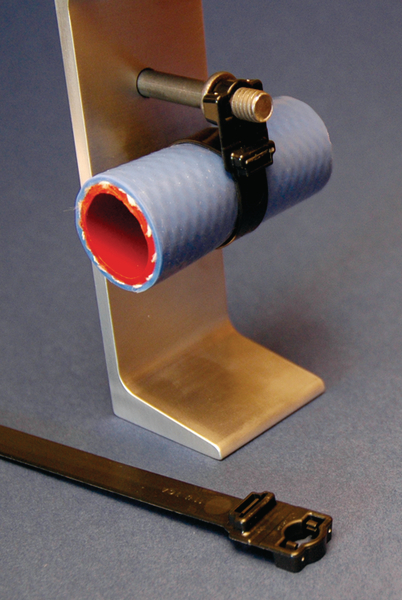

| Application | Primarily designed for use in the automotive industry, these parts can be used in a wide variety of applications where weld studs or ISO bolts are used and cables need to be bundled and secured. |
| Colour | Black (BK) |
| Fixation Method | Stud Mount |
| Identification Plate Position | none |
| Local order number | WS125-HIRHS-BK-D1 |
| Material | Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV) |
| PART DESCRIPTION | WSI250-PA66HIRHSUV-BK |
| Pack Cont. | 300pcs. |
| Package Content packed in | Bag |
| Product Family | WS-Series for 6.35 mm threaded studs |
| Product Group | 1-Piece Fixing Ties for Weld Studs, for Heavy Duty Applications |
| Releasable Closure (Yes/No) | No |
| Tie Closure | plastic pawl |
| Type | WSI250 |
| Variant | Inside Serrated |
Download
| CE Certification | No |
| CSA Certified | No |
| ELV compliant Dir. Art. 4 (2) | YES |
| Flammability | UL 94 HB |
| Hazardous Goods | No |
| Operating Temperature | -40 °C to +105 °C, (+105 °C for 500 h) |
| ROHS compliant | Yes |
| Specifications |
|
| UL Listed (US and Canada) | No |
| UL Listed (US and Canada) | No |
| UL Recognized (US and Canada) | No |
| UL Recognized (US and Canada) | No |
| UV-Stabilised | Yes |
|
|
|
| Country of Origin | US |
| Customs Number | 39269097 |
| GTIN-13 / EAN | 4031026312620 |
| Packaging 1 - Height (m) | 0.03m |
| Packaging 1 - Length (m) | 0.5m |
| Packaging 1 - Qty | 300 |
| Packaging 1 - Type | Bag |
| Packaging 1 - Volume (m³) | 0.0018m³ |
| Packaging 1 - Weight (kg) | 1.950001kg |
| Packaging 1 - Width (m) | 0.12m |
| Packaging 3 - Height (m) | 0.212725m |
| Packaging 3 - Length (m) | 0.51435m |
| Packaging 3 - Qty | 1200 |
| Packaging 3 - Type | Box |
| Packaging 3 - Volume (m³) | 0.0347m³ |
| Packaging 3 - Weight (kg) | 8.420004kg |
| Packaging 3 - Width (m) | 0.3175m |
| Packaging 4 - Height (m) | 1.209m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 24000 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.161m³ |
| Packaging 4 - Weight (kg) | 189.4kg |
| Packaging 4 - Width (m) | 0.8m |
