Fixing tie for hole (round), inside serrated, ∅1.5-34.0mm, grey, 100pcs.
Art.-No. 126-03000 | YQR10016-PA66-GY |  Details

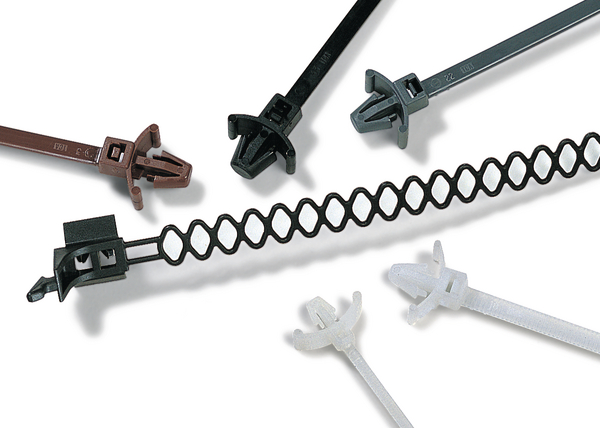

A wide range of arrowhead fixing ties which are suitable for different panel thicknesses and hole diameters.

    • Easy to assemble without the need for a tool
    • Cable tie head always situated in defined position
    • Arrowhead simply locks into place
    • Supporting legs provide a secure and firm fixing in areas where space is limited
    • Releasable and therefor reusable
    Show more
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads CAD-Download Datasheet
    Application With a diverse range of fixing possibilities are ideal for use in many different industries, including automotive, aerospace and panel building.
    Colour Grey (GY)
    Fixation Method arrowhead
    Identification Plate Position none
    Key product features releasable
    Local order number YQR10016.NE3P
    Material Polyamide 6.6 (PA66)
    PART DESCRIPTION YQR10016-PA66-GY
    Pack Cont. 100pcs.
    Package Content packed in Bag
    Product Family 1-Piece Fixing Ties with Arrowhead, with wings, releasable, for round holes
    Product Group 1-Piece Fixing Ties with Arrowhead, with Wings, releasable
    Releasable Closure (Yes/No) Yes
    Short Description 1-piece fixing ties with arrowhead, with wings, releasable 165x4.6 mm, grey
    Tie Closure plastic pawl
    Type YQR10016
    Variant Inside Serrated
    Bundle Diameter max (metric) 34.0mm
    Bundle ∅ 1.5-34.0mm
    Bundle ∅ min. 1.5mm
    Height (H) 9.5mm
    Length (L) 165mm
    Min.Tensile Strength 225N
    Weight/Unit 0.001769kg
    Width (W) 4.6mm
    Width (W2) 18.5mm
    for Hole ∅ (FH) 6.9 - 7.1 mm
    for Panel Thickness min - max 1.6 - 4 mm
    ELV compliant Dir. Art. 4 (2) YES
    Flammability UL 94 V2
    Hazardous Goods No
    Operating Temperature -40 °C to +85 °C
    ROHS compliant Yes
    Specifications
    Country of Origin GB
    Customs Number 39269097
    GTIN-13 / EAN 5022660327797
    Packaging 1 - Height (m) 0.045m
    Packaging 1 - Length (m) 0.3m
    Packaging 1 - Qty 100
    Packaging 1 - Type Bag
    Packaging 1 - Volume (m³) 0.00257m³
    Packaging 1 - Weight (kg) 0.176901kg
    Packaging 1 - Width (m) 0.19m
    Packaging 3 - Height (m) 0.364m
    Packaging 3 - Length (m) 0.563m
    Packaging 3 - Qty 5000
    Packaging 3 - Type Box
    Packaging 3 - Volume (m³) 0.0777m³
    Packaging 3 - Weight (kg) 9.80605kg
    Packaging 3 - Width (m) 0.379m
    Packaging 4 - Height (m) 1.236m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 60000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.187m³
    Packaging 4 - Weight (kg) 138.672kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121703
