Cable tie endless wastefree product, 15.75x20.3mm, black, 25pcs.
Art.-No. 111-31000 | EL-TY (TELSH)-POMUVSS-BK Details

  • Made of very strong Polyacetal (POM)

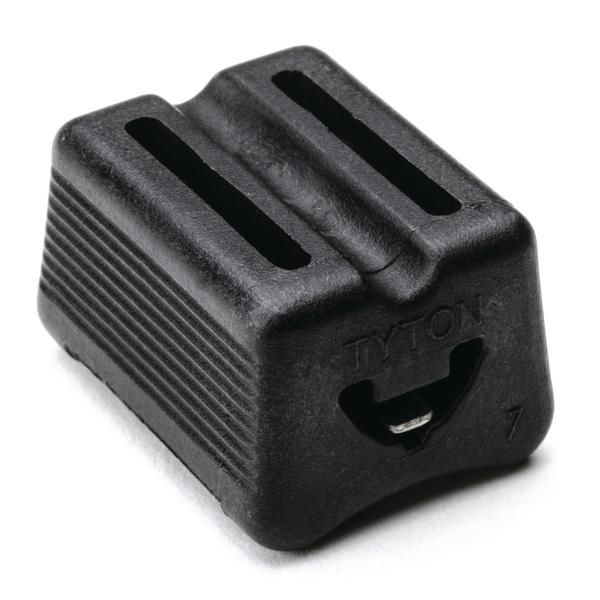

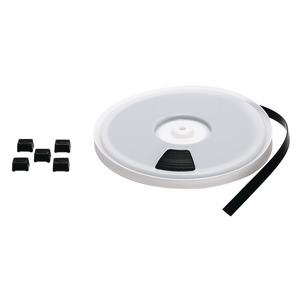

  • System consists of endless strap, spacers and heads
  • Head includes stainless steel pawls for a proper fixation
  • Very secure fixing and good resistance to ageing and UV light
  • Suits any bundle diameter and reduces inventory
Show more

Request your individual offer now

Application These robust cable ties are particularly suitable for use with larger diameter cables, pipes and hoses. Designed originally for securing overhead catenary and cables, they are now used in many industries from the building sector, through to the chemical industry, to the installation of signs for traffic management. Separate spacers allow for a defined distance when bundling in parallel.
Cable Tie Polyacetal (POM)
Colour Black (BK)
Content 25 Heads
Identification Plate Position none
Key product features wastefree product
Local order number TELSH.NB1P
Material Polyacetal, UV-stabilised with stainless steel pawl (POMUVSS)
Material Head Polyacetal (POM)
Material Spacer Polypropylene (PP)
PART DESCRIPTION EL-TY (TELSH)-POMUVSS-BK
Pack Cont. 25pcs.
Package Content packed in Bag
Product Family EL-TY-Series
Product Group Endless cable ties with separate head and spacer
Releasable Closure (Yes/No) No
Short Description Endless Cable Ties black with Separate Head and Spacer
Tie Closure steel pawl
Type EL-TY (TELSH)
Variant Endless
Height (H) 12.40mm
Length (L) 15.75mm
Min.Tensile Strength 1115N
Strap Width max. (G) 12.7mm
Weight/Unit 0.0041kg
Width (W) 20.3mm
Width (W2) 20.3mm
CE Certification No
CSA Certified No
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 HB
Hazardous Goods No
Operating Temperature -40 °C to +90 °C
Operating Temperature Head (Metric) -40 °C to +85 °C
ROHS compliant Yes
Specifications
UL Listed (US and Canada) No
UL Listed (US and Canada) No
UL Recognized (US and Canada) No
UL Recognized (US) No
UV-Stabilised No
Country of Origin US
Customs Number 39269097
GTIN-13 / EAN 4031026106816
Packaging 1 - Height (m) 0.02m
Packaging 1 - Length (m) 0.21m
Packaging 1 - Qty 25
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.00042
Packaging 1 - Weight (kg) 0.102501kg
Packaging 1 - Width (m) 0.1m
Packaging 3 - Height (m) 0.212725m
Packaging 3 - Length (m) 0.51435m
Packaging 3 - Type Box
Packaging 3 - Volume (m³) 0.0347
Packaging 3 - Width (m) 0.3175m
ETIM 7.0 Key EC000046
ETIM 8.0 Key EC000046
ETIM 9.0 Key EC000046
UNSPSC Key 39121703
