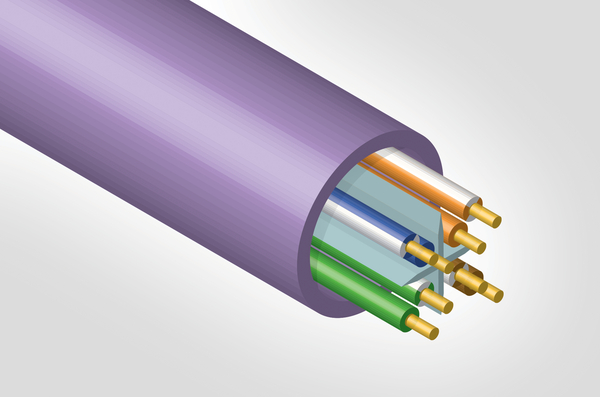

Category 6 Unshielded Cca Cable
Art.-No. 851-05093
| CA196
|
Details
- Exceeds Category 6 performance standards
- CPR Euroclass rating: Cca, S1, d1, a1
- Suitable for Cca, Dca and Eca specified inatallations
- Metre marked for accurate measuring
- Supplied in sturdy Reelex boxes of 305m
Request your individual offer now
Request quote
More products in this product group:
| Cable ∅ max | 7.1mm |
| Colour | Violet (VT) |
| Description | Category 6 U/UTP Cable from HellermannTyton is supplied in boxes of 305m and Conforms to CPR Euroclass rating Cca, S1, d1, a1. The cable is marked at 1m intervals for accurate measuring. |
| PART DESCRIPTION | CA196 |
| Pack Cont. | 305m |
| Package Content packed in | Box |
| Performance Category | Category 6 (Class E) |
| Product Family | Unshielded 305m |
| Product Group | CAT6 U/UTP Cable Cca |
| Short Description | Category 6 Unshielded Cca Cable |

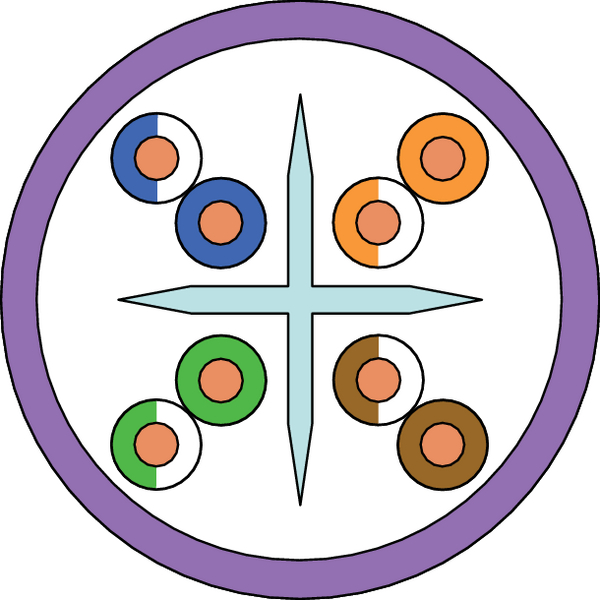

| Technical Description | The Category 6 Cable is constructed as a U/UTP Cable and exceeds the relevant performance requirements of ISO/IEC 11801-2 and TIA/ANSI 568-C.2 EN50173, IEC 61156-5, EN 50288-10-1. The LSHF-FR sheath conforms with fire rating IEC 60332-1, 60332-3-24, 60754-2 and 61034. The copper conductor is AWG 23 and the cable has an nominal overall diameter of 7.1mm. This cable complies with the requirements within the Construction Products regulations EN50575:2014+A1:2016 - Power, control and communication cables. Cables for general applications in construction works subject to reaction to fire requirements. |
| Type | CA196 |
