23/11/2024

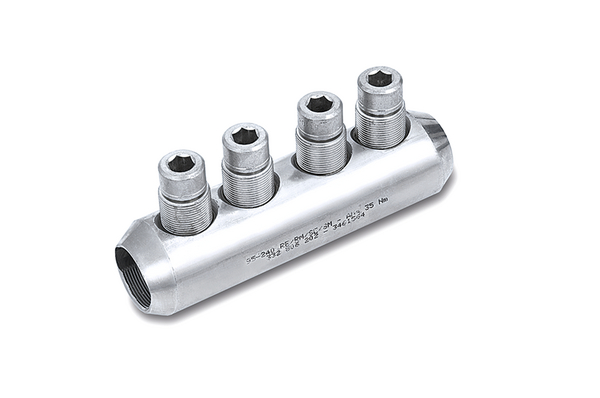

Mechanical connector, 95 - 240mm², ∅35mm, L=128mm, metal
Art.-No. 435-01506 | Mechanical connector 9524-ST-ML |  Details

Mechanical connectors with barrier.

    This product is not available anymore.
    • For connecting different conductor cross-sections
    • Suitable for aluminium and copper conductors
    • Tin-plated connector body with barrier and shear-off bolts
    Add to watchlist

    Request your individual offer now

     Request quote
    Application Galvanised mechanical connector provided with barrier and shear-off bolts. Suitable for stranded and solid aluminium and copper conductors in all kind of cable accessories. They also comply with DIN 4740 requirements for shrinking technology.
    Colour Zinc Plated Metal (BV)
    Material Steel (ST)
    PART DESCRIPTION Mechanical connector 9524-ST-ML
    Pack Cont. 1pc.
    Package Content packed in pcs.
    Product Family Mechanical connector, tin-plated, with barrier and shear-off bolts for AI and CU conductors
    Product Group Connectors
    Short Description Mechanical connector 9524 ST ML
    Type Mechanical connector 9524
    Conductor Size Range mm² 95 - 240mm²
    Diameter (D) 35mm
    Length (L) 128mm
    Nut Size (NS) 8mm
    Weight/Unit 0.34kg
    ELV compliant Dir. Art. 4 (2) YES
    Hazardous Goods No
    ROHS compliant Yes
    Specifications
    Voltage Range up to 15kV
    Country of Origin DE
    Customs Number 85369010
    GTIN-13 / EAN 4250596412770
    Packaging 1 - Height (m) 0.055m
    Packaging 1 - Length (m) 0.125m
    Packaging 1 - Qty 1
    Packaging 1 - Type Pack
    Packaging 1 - Volume (m³) 0.00024m³
    Packaging 1 - Weight (kg) 0.34kg
    Packaging 1 - Width (m) 0.035m
    ETIM 7.0 Key EC001063
    ETIM 8.0 Key EC001063
    ETIM 9.0 Key EC001063
