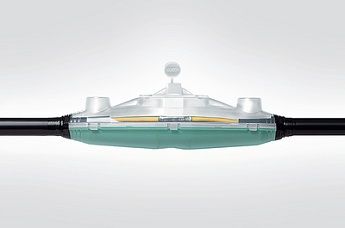

Cast resin joint, Branch Y, 4 x 16mm² to 5 x 25mm², L=350mm, 1445 ml/1980 g, Polyurethane resin (PUR) green
Art.-No. 435-12065
| Y-2 / SF-PUR-GN
|
Details
- Colour changes from blue to green whilst mixing
- Two-part, impact-proof, transparent moulding shells
- Compact, optimized dimensions
- Standard cable diameters indicated on the shells
- SF-system
- Immediately ready for use
- Longitudinally and transversely watertight
- Joint can be submerged directly after casting
Request your individual offer now
Request quote
More products in this product group:
| Application | RELICON branch joints are made for installations in low-voltage electrical networks. They are suitable for jointing on polymeric cables and wires made of PVC, XLPE, PE, EPR and utility cables. Application: Connections in industrial buildings, power supply in the ground, outdoors and underwater. |
| Colour | Green (GN) |
| Content |
Cast resin PUR 33 Two-chamber pouch, transparent Moulding shells, transparent SF-system and nozzle Protective gloves, emery cloth, installation instructions HelaTape vinyl electrical tape |
| Material | Polyurethane resin (PUR) |
| No. of Wires | 5 |
| PART DESCRIPTION | Y-2 / SF-PUR-GN |
| Pack Cont. | 1Set |
| Package Content packed in | set |
| Product Family | RELICON Y-Line SF with PUR 33 |
| Product Group | Branch cable joints |
| Short Description | Branch joint Y-2 / SF 4x16 to 5x25, 4x6 to 5x16 |
| Type | Y-2 / SF |
| Variant | Cast resin |
Download
| Country of Origin | PL |
| Customs Number | 39095090 |
| GTIN-13 / EAN | 4031026626826 |
| Packaging | Bag |
| Packaging 3 - Height (m) | 0.18m |
| Packaging 3 - Length (m) | 0.52m |
| Packaging 3 - Qty | 1 |
| Packaging 3 - Type | Carton |
| Packaging 3 - Volume (m³) | 0.029m³ |
| Packaging 3 - Weight (kg) | 2.97kg |
| Packaging 3 - Width (m) | 0.31m |
| Packaging 4 - Height (m) | 1.254m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 24 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.204m³ |
| Packaging 4 - Weight (kg) | 92.28kg |
| Packaging 4 - Width (m) | 0.8m |
| Storage Temperature | +4 °C to +40 °C |
Y-0 / SF
435-12063
