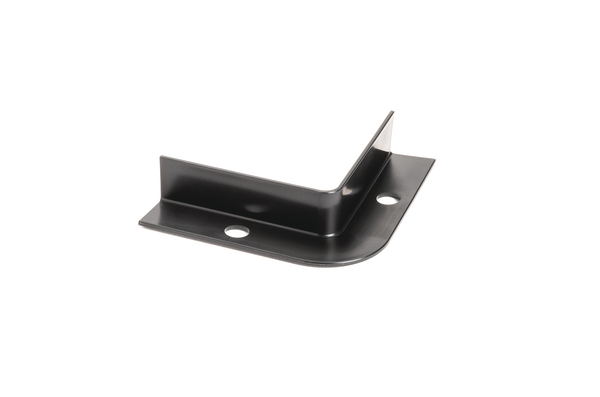

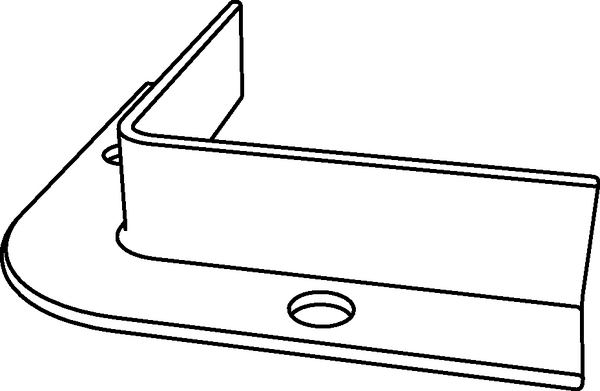

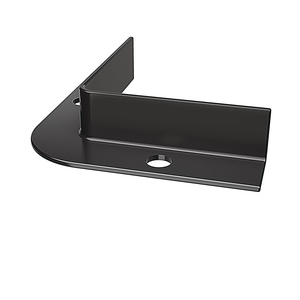

Mini cable channel, 90°, for hole (round), L=63.5mm, black, 1600pcs.
Art.-No. 133-01477
| 90MINICHNL2-PPTD20-BK
|
Details
- Angled channel allows specific guidance around corners or obstructions
- U-Shape channel provides three sides of protection for wire or bundle
- Protects against abrasion and other environmental factors
- Types made from PPT20 material convince with a high operating temperature
Request your individual offer now
Request quote
More products in this product group:
| Application | The mini cable channel family allows a cost effective routing solution that provides protection and configurable routing. Pieces are modular and interchangeable, providing high levels of customization. Mini channels replace engineered channels which are costly to design and develop. |
| Colour | Black (BK) |
| Material | Polypropylene 20% Talkum (PPTD20) |
| PART DESCRIPTION | 90MINICHNL2-PPTD20-BK |

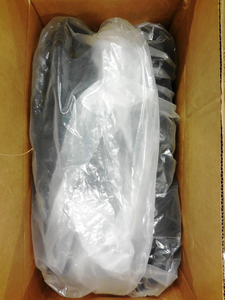

| Pack Cont. | 1600pcs. |
| Package Content packed in | Bag |
| Product Family | Modular and interchangeable cable routing system |
| Product Group | Mini cable channel family |
| Type | 90MINICHNL2 |
Download
| CE Certification | No |
| CSA Certified | No |
| ELV compliant Dir. Art. 4 (2) | YES |
| Flammability | UL 94 HB |
| Hazardous Goods | No |
| Operating Temperature | -40 °C to +65 °C |
| ROHS compliant | Yes |
| Specifications |
|
| UL Listed (US and Canada) | No |
| UL Listed (US and Canada) | No |
| UL Recognized (US and Canada) | No |
| UL Recognized (US and Canada) | No |
| UV-Stabilised | No |
|
|
|
| Country of Origin | US |
| Customs Number | 39269097 |
| GTIN-13 / EAN | 4031026482316 |
| Packaging 1 - Height (m) | 0.19m |
| Packaging 1 - Length (m) | 0.585m |
| Packaging 1 - Qty | 1600 |
| Packaging 1 - Type | Bag |
| Packaging 1 - Volume (m³) | 0.03168m³ |
| Packaging 1 - Weight (kg) | 7.457601kg |
| Packaging 1 - Width (m) | 0.285m |
| Packaging 3 - Height (m) | 0.37465m |
| Packaging 3 - Length (m) | 0.59055m |
| Packaging 3 - Qty | 1600 |
| Packaging 3 - Type | Box |
| Packaging 3 - Volume (m³) | 0.0646m³ |
| Packaging 3 - Weight (kg) | 8.277601kg |
| Packaging 3 - Width (m) | 0.2921m |
| Packaging 4 - Height (m) | 1.269m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 19200 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.218m³ |
| Packaging 4 - Weight (kg) | 120.331kg |
| Packaging 4 - Width (m) | 0.8m |
