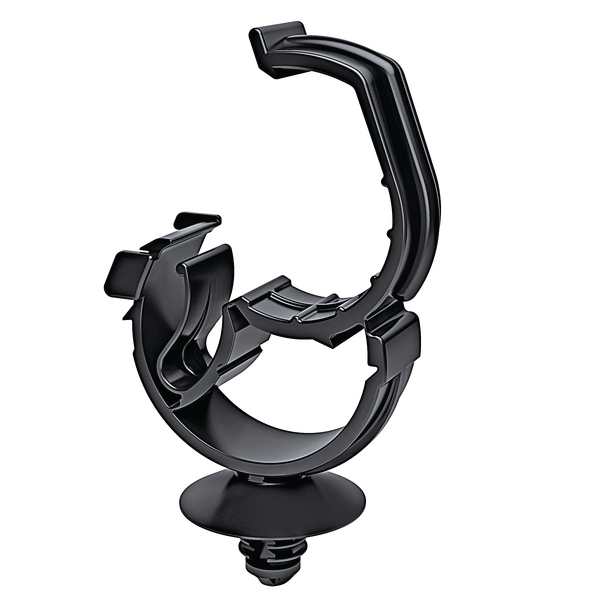

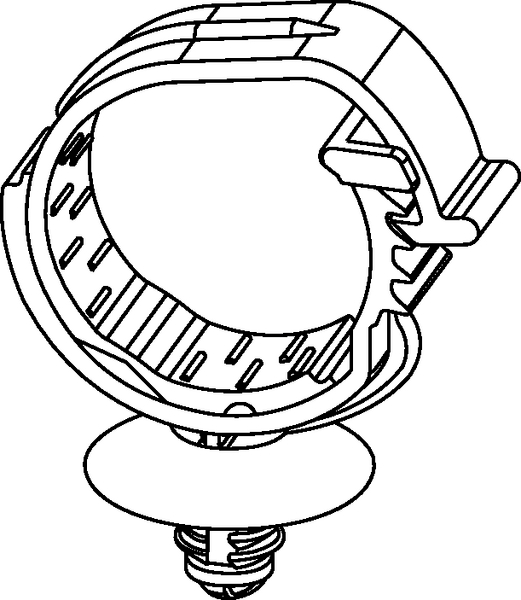

Bundling Clip 34x10 mm, automatic locking, high impact modified, heat stabilised, black
Art.-No. 151-01198 | AHC25FT6LG-PA66HIRHS-BK Details

  • Allows simple and secure fixing of cables
  • Automatic closure to save time during installation
  • Can be easily reopened
  • Disc adjusts tie for pressures from various directions and minimizes ingress of dust and dirt

Request your individual offer now

Application Automatic Harnesses Clips were developed to maintain engine harnesses in the automotive industry. They are also use in the electrical industry to maintain tubing and harnesses. Thanks to its versatility and technical specifications, they can adapt to different industries.
Colour Black (BK)
Key product features lockable, removable
Local order number 151-01198
Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
PART DESCRIPTION AHC25FT6LG-PA66HIRHS-BK
Pack Cont. 1300pcs.
Package Content packed in Bag
Short Description Bundling Clip 34x10 mm, automatic locking, high impact modified, heat stabilised, black
Type AHC25FT6LG
Bundle Diameter max (metric) 22.0mm
Bundle ∅ 16.0-22.0mm
Bundle ∅ min. 16.0mm
Disc ∅ 20.0mm
Length (L) 34.5mm
Panel Thickness max. 0.7 - 4.0mm
Weight/Unit 0.003092kg
Width (W) 10.0mm
for Hole ∅ (FH) 6.4 - 7.0 mm
for Panel Thickness min - max 0.7 - 4 mm
ELV compliant Dir. Art. 4 (2) YES
Hazardous Goods No
ROHS compliant Yes
Specifications
Country of Origin FR
Customs Number 39269097
GTIN-13 / EAN 4031026469959
Packaging 1 - Height (m) 0.18m
Packaging 1 - Length (m) 0.585m
Packaging 1 - Qty 1300
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.04107
Packaging 1 - Weight (kg) 4.019601kg
Packaging 1 - Width (m) 0.39m
Packaging 3 - Height (m) 0.25m
Packaging 3 - Length (m) 0.6m
Packaging 3 - Qty 1300
Packaging 3 - Type Box
Packaging 3 - Volume (m³) 0.06
Packaging 3 - Weight (kg) 4.769601kg
Packaging 3 - Width (m) 0.4m
Packaging 4 - Height (m) 1.144m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 20800
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.098
Packaging 4 - Weight (kg) 97.314kg
Packaging 4 - Width (m) 0.8m
ETIM 7.0 Key EC000464
ETIM 8.0 Key EC000464
ETIM 9.0 Key EC000464
UNSPSC Key 39121702
