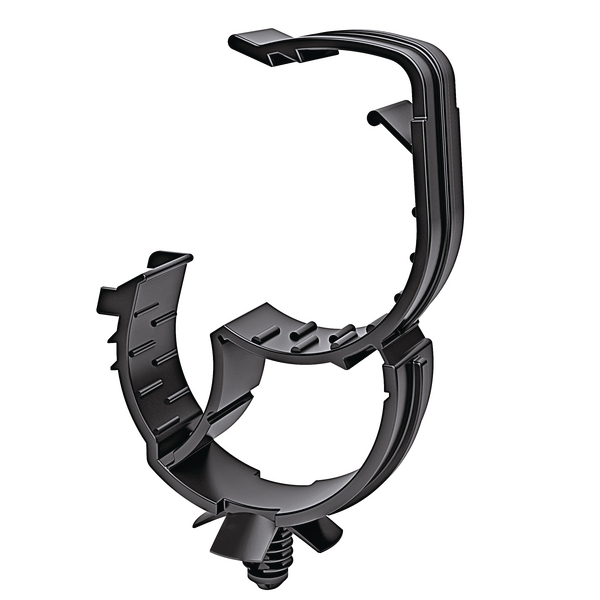

Harness Clip, automatic close, round hole 6.4 - 7.0 mm, fir tree, high impact modified, heat stabilised, black
Art.-No. 151-01376 | AHC336FT6LG-PA66HIRHS-BK |  Details

    • Allows simple and secure fixing of cables
    • Automatic closure to save time during installation
    • Can be easily reopened
    • Disc adjusts tie for pressures from various directions and minimizes ingress of dust and dirt
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads Datasheet
    Application Automatic Harnesses Clips were developed to maintain engine harnesses in the automotive industry. They are also use in the electrical industry to maintain tubing and harnesses. Thanks to its versatility and technical specifications, they can adapt to different industries.
    Colour Black (BK)
    Key product features lockable, removable
    Local order number 151-01376
    Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    PART DESCRIPTION AHC336FT6LG-PA66HIRHS-BK
    Pack Cont. 700pcs.
    Package Content packed in Bag
    Short Description Harness Clip, automatic close, round hole 6.4 - 7.0 mm, fir tree, high impact modified, heat stabilised, black
    Type AHC336FT6LG
    Bundle Diameter max (metric) 37.5mm
    Bundle ∅ 32.0-37.5mm
    Bundle ∅ min. 32.0mm
    Disc ∅ 22.0mm
    Length (L) 50.0mm
    Panel Thickness max. 0.7 - 4.0mm
    Weight/Unit 0.00605kg
    Width (W) 14.0mm
    for Hole ∅ (FH) 6.4 - 7.0 mm
    for Panel Thickness min - max 0.7 - 4 mm
    ELV compliant Dir. Art. 4 (2) YES
    Hazardous Goods No
    ROHS compliant Yes
    Specifications
    Country of Origin FR
    Customs Number 39269097
    GTIN-13 / EAN 4031026522753
    Packaging 1 - Height (m) 0.16m
    Packaging 1 - Length (m) 0.585m
    Packaging 1 - Qty 700
    Packaging 1 - Type Bag
    Packaging 1 - Volume (m³) 0.0365m³
    Packaging 1 - Weight (kg) 4.235001kg
    Packaging 1 - Width (m) 0.39m
    Packaging 3 - Height (m) 0.2m
    Packaging 3 - Length (m) 0.6m
    Packaging 3 - Qty 700
    Packaging 3 - Type Box
    Packaging 3 - Volume (m³) 0.048m³
    Packaging 3 - Weight (kg) 5.095001kg
    Packaging 3 - Width (m) 0.4m
    Packaging 4 - Height (m) 1.119m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 14000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.074m³
    Packaging 4 - Weight (kg) 122.9kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000464
    ETIM 8.0 Key EC000464
    ETIM 9.0 Key EC000464
    UNSPSC Key 39121702
