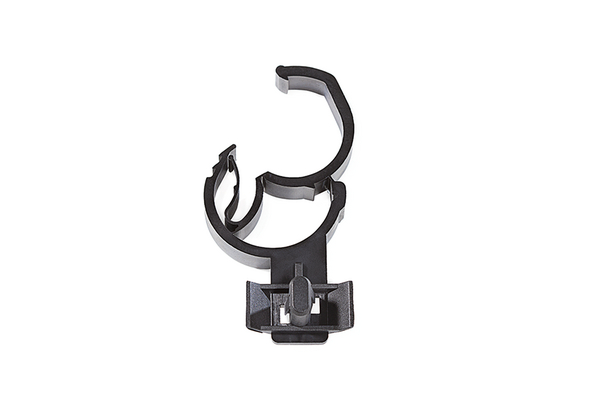

Cable clip for hole (oval), ∅6.2 x 12.2 mm, Dmin=17.0mm, Dmax=28.0mm
Art.-No. 151-00181
| AHC3DH-PA66HIRHS-BK
|
Details
- Push and click closure for fixing of wires
- Clip is clicked into a specific hole
- AHC( )SS und AHC( )SB can be pushed onto a 5.0 mm stud
Request your individual offer now
Request quote
More products in this product group:
| Application | Offering a simple and secure method of attaching cables to panels. Originally designed for the automotive industry, these products are used in a wide range of applications with sheet metal panels across various industries. |
| Colour | Black (BK) |
| Key product features | for multiple routing, for faster processing, lockable |
| Local order number | AHC3DH.HIRHSBRP |
| Material | Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS) |
| PART DESCRIPTION | AHC3DH-PA66HIRHS-BK |
| Pack Cont. | 300pcs. |
| Package Content packed in | Bag |
| Product Family | AHC-Series |
| Product Group | Fixing Elements for Tubes and Harnesses with Automatic Locking Feature |
| Short Description | Bundling Clip 66x10 mm, automatic locking, high impact modified, heat stabilised, black |
| Type | AHC3DH |
Download
|
|
|
| Country of Origin | FR |
| Customs Number | 39269097 |
| GTIN-13 / EAN | 4031026337609 |
| Packaging 1 - Height (m) | 0.3m |
| Packaging 1 - Length (m) | 0.625m |
| Packaging 1 - Qty | 300 |
| Packaging 1 - Type | Bag |
| Packaging 1 - Volume (m³) | 0.0825m³ |
| Packaging 1 - Weight (kg) | 2.348478kg |
| Packaging 1 - Width (m) | 0.44m |
| Packaging 3 - Height (m) | 0.2m |
| Packaging 3 - Length (m) | 0.4m |
| Packaging 3 - Qty | 300 |
| Packaging 3 - Type | Box |
| Packaging 3 - Volume (m³) | 0.024m³ |
| Packaging 3 - Weight (kg) | 2.768478kg |
| Packaging 3 - Width (m) | 0.3m |
| Packaging 4 - Height (m) | 1.144m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 12000 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.098m³ |
| Packaging 4 - Weight (kg) | 131.72kg |
| Packaging 4 - Width (m) | 0.8m |
