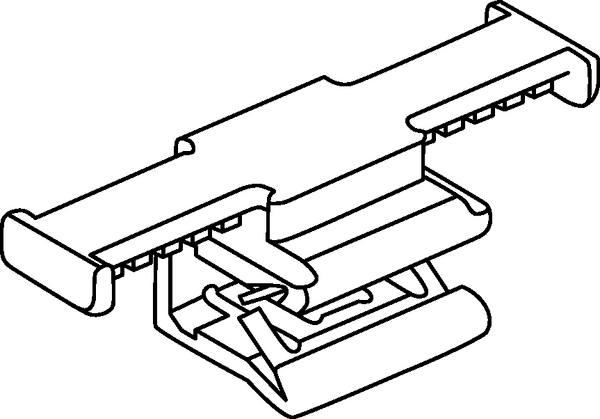

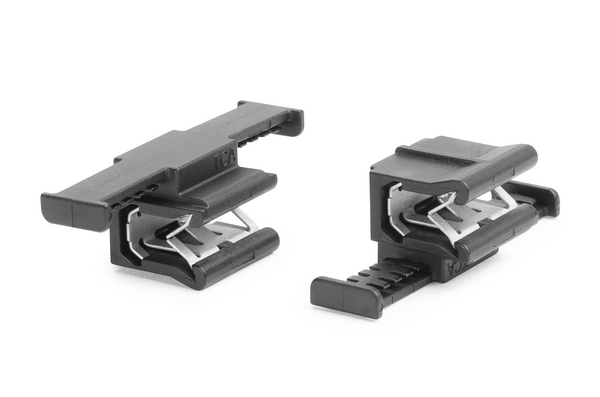

Bundling clip for edge, L=39.0mm, black, 500pcs.
Art.-No. 102-68385
| ATSBCEC38-PA66HSW-BK
|
Details
- Easy assembly, just shuffle manually
- Designed for edges of 1 - 3 and 1.5 - 4 mm
- Integrated metal clamp holds clip firmly in place
- Clamp consists of double tempered steel spring
- ATS fixing elements can be tied automatically with tools ATS3080, AT2000 or AT2000CPK
Request your individual offer now
Request quote
| Application | This EdgeClip with bundling bar is special designed for automatisation processes. They can be used with the Autotool CPK hybrid and Autotool Systems 3080 / ATS flex but also with other cable ties or tapes. This product can beused on edges 1.5 - 4 mm. |
| Colour | Black (BK) |
| Fixation Method | Edge Clip |
| Key product features | products for automatic tools |
| Local order number | ATS BCEC38 |
| Material | Polyamide 6.6, heat and UV-resistant (PA66HSW) |
| PART DESCRIPTION | ATSBCEC38-PA66HSW-BK |
| Pack Cont. | 500pcs. |
| Package Content packed in | Bag |
| Short Description | Bundling clip 39x2.5 mm, high impact modified, heat stabilised, black |
| Type | ATSBCEC38 |
Download
|
|
|
| Country of Origin | DE |
| Customs Number | 39269097 |
| GTIN-13 / EAN | 4031026338026 |
| Packaging 1 - Height (m) | 0.07m |
| Packaging 1 - Length (m) | 0.315m |
| Packaging 1 - Qty | 500 |
| Packaging 1 - Type | Bag |
| Packaging 1 - Volume (m³) | 0.00606m³ |
| Packaging 1 - Weight (kg) | 1.061862kg |
| Packaging 1 - Width (m) | 0.275m |
| Packaging 3 - Height (m) | 0.204m |
| Packaging 3 - Length (m) | 0.591m |
| Packaging 3 - Qty | 5000 |
| Packaging 3 - Type | Box |
| Packaging 3 - Volume (m³) | 0.048m³ |
| Packaging 3 - Weight (kg) | 11.32362kg |
| Packaging 3 - Width (m) | 0.398m |
| Packaging 4 - Height (m) | 1.164m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 100000 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.117m³ |
| Packaging 4 - Weight (kg) | 247.5kg |
| Packaging 4 - Width (m) | 0.8m |
