22/12/2024

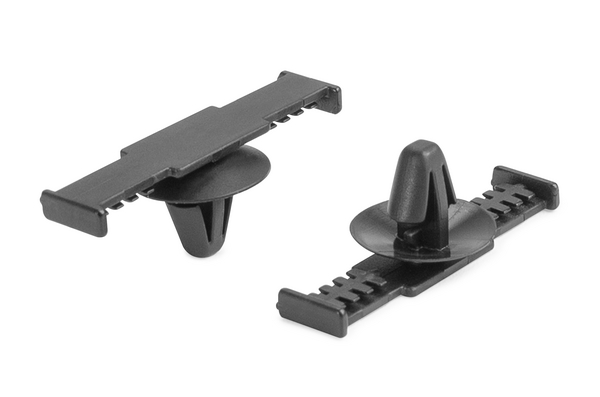

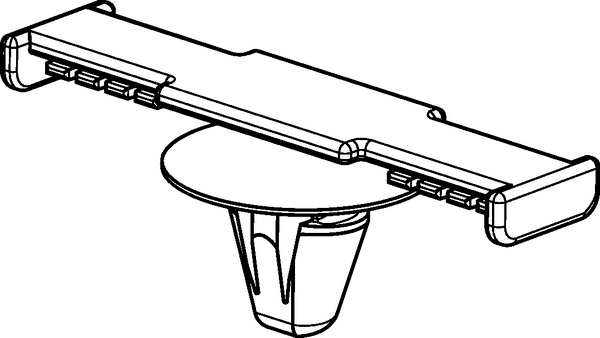

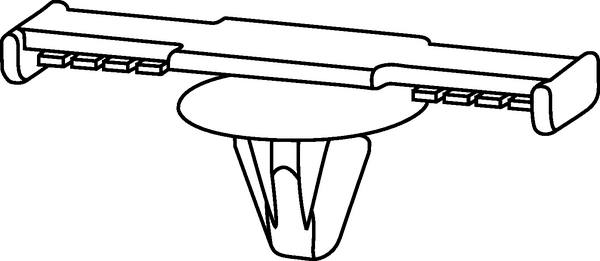

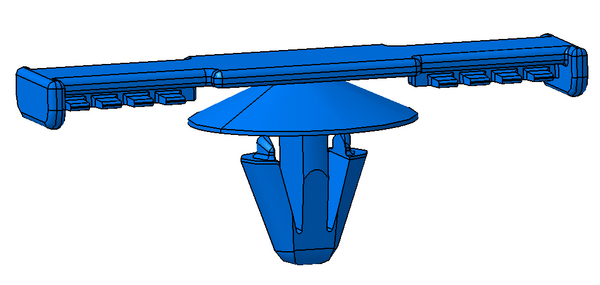

Bundling clip, L=39.0mm, black, 500pcs.
Art.-No. 102-69066 | ATSBCSFT6.5-PA66HIRHS-BK |  Details

    • Optimized for use Automatic Cable Tying Systems
    • Easy to apply
    • Fixing elements can be used with the Autotool CPK hybrid and Autotool Systems 3080 / ATS flex
    • Special designed for automatisation processes
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads CAD-Download Datasheet
    Application This fixing element for round holes 6.5 mm with bundling bar is special designed for automatisation processes. They can be used with the Autotool CPK hybrid and Autotool Systems 3080 / ATS flex but also with other cable ties or tapes.
    Colour Black (BK)
    Fixation Method arrowhead
    Key product features products for automatic tools
    Local order number ATS BC SFT 6,5
    Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    PART DESCRIPTION ATSBCSFT6.5-PA66HIRHS-BK
    Pack Cont. 500pcs.
    Package Content packed in Bag
    Product Family Bundling Clips with Arrowhead
    Short Description Bundling Clip 39x2.5 mm black PA66HIRHS
    Type ATSBCSFT6.5
    Bundle Diameter max (metric) 20.0mm
    Bundle ∅ 2.0-20.0mm
    Bundle ∅ min. 2.0mm
    Bundling Bar Length 39.0mm
    Length (L) 39.0mm
    Min.Tensile Strength 80N
    Panel Thickness max. 2.3 - 3.3mm
    Weight/Unit 0.000848kg
    Width (W) 2.5mm
    for Hole ∅ (FH) 6.3 - 6.7 mm
    for Panel Thickness min - max 2.3 - 3.3 mm
    ELV compliant Dir. Art. 4 (2) YES
    Hazardous Goods No
    Operating Temperature -40 °C to +105 °C, (+105 °C for 500 h)
    ROHS compliant Yes
    Specifications
    Country of Origin DE
    Customs Number 39269097
    GTIN-13 / EAN 4031026297019
    Packaging 1 - Height (m) 0.04m
    Packaging 1 - Length (m) 0.315m
    Packaging 1 - Qty 500
    Packaging 1 - Type Bag
    Packaging 1 - Volume (m³) 0.00372m³
    Packaging 1 - Weight (kg) 0.441kg
    Packaging 1 - Width (m) 0.295m
    Packaging 3 - Height (m) 0.368m
    Packaging 3 - Length (m) 0.584m
    Packaging 3 - Qty 10000
    Packaging 3 - Type Box
    Packaging 3 - Volume (m³) 0.083m³
    Packaging 3 - Weight (kg) 10.88956kg
    Packaging 3 - Width (m) 0.386m
    Packaging 4 - Height (m) 1.248m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 120000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.198m³
    Packaging 4 - Weight (kg) 151.56kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000127
    ETIM 8.0 Key EC000127
    ETIM 9.0 Key EC000127
    UNSPSC Key 39121702
