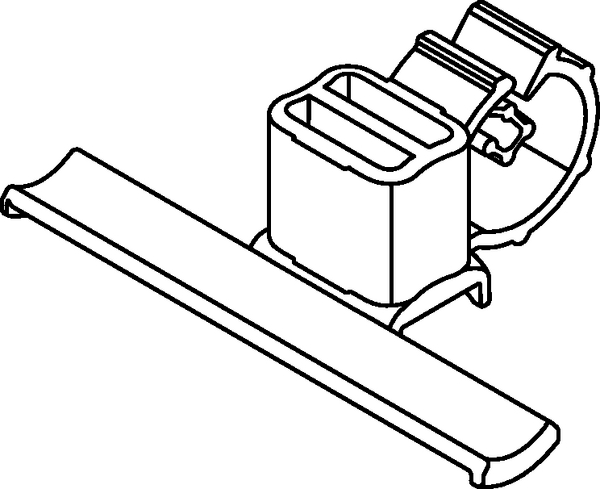

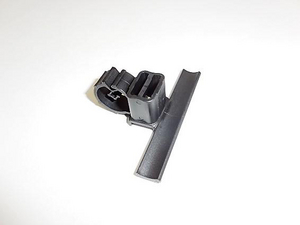

Bundling clip for hole (round), L=60.4mm, black, 1000pcs.
Art.-No. 151-02263 | BC60HC4x6SB5-6-MOD-PA66HIRHS-BK Details

Request your individual offer now

Colour Black (BK)
Foot Part Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
PART DESCRIPTION BC60HC4x6SB5-6-MOD-PA66HIRHS-BK
Pack Cont. 1000pcs.

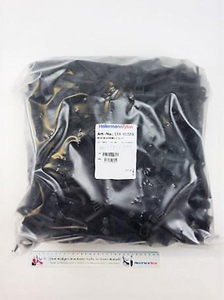

Package Content packed in Bag
Type BC60HC4x6SB5-6-MOD
Attach to Ø 4 x 6.0
Bundling Bar Length 60.4mm
Height (H) 19.5mm
Length (L) 60.4mm
Max Stud Length 17.0mm
Stud ∅ T5, T6
Weight/Unit 0.003875kg
Width (W) 40.15mm
ELV compliant Dir. Art. 4 (2) YES
Hazardous Goods No
ROHS compliant Yes
Specifications
Country of Origin PL
Customs Number 39269097
GTIN-13 / EAN 4031026558240
Packaging 1 - Height (m) 0.3m
Packaging 1 - Length (m) 0.5m
Packaging 1 - Qty 1000
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.09
Packaging 1 - Weight (kg) 3.957104kg
Packaging 1 - Width (m) 0.6m
Packaging 3 - Height (m) 0.368m
Packaging 3 - Length (m) 0.584m
Packaging 3 - Qty 3000
Packaging 3 - Type Box
Packaging 3 - Volume (m³) 0.083
Packaging 3 - Weight (kg) 12.691312kg
Packaging 3 - Width (m) 0.386m
Packaging 4 - Height (m) 1.248m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 36000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.198
Packaging 4 - Weight (kg) 173.292kg
Packaging 4 - Width (m) 0.8m
ETIM 7.0 Key EC000127
ETIM 8.0 Key EC000127
ETIM 9.0 Key EC000127
UNSPSC Key 39121702
