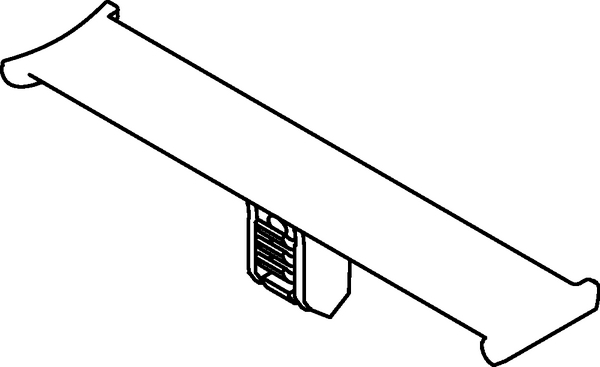

Bundling clip for hole (oval), L=80.0mm, black, 500pcs.
Art.-No. 151-01005 | BC80DOP63x10-PA66HIRHS-BK | Details

Add to watchlist

Request your individual offer now

Request quote

Distributors near you

Downloads Datasheet

More products in this product group:

Bundling Clips with Fir Tree >

Base Data

Application	These bundling clips are mainly used in the automotive industry, particularly for the assembly of cable harnesses. They offer a simple and user-friendly method for fastening cables, hoses and pipes.
Colour	Black (BK)
Local order number	Wickelclip-Cable-Holder
Material	Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
PART DESCRIPTION	BC80DOP63x10-PA66HIRHS-BK
Pack Cont.	500pcs.
Package Content packed in	Bag
Product Family	Oval holes
Product Group	Bundling Clips with Fir Tree
Type	BC80DOP63x10

Product Dimensions

Bundling Bar Length	80.0mm
Fixing Hole Shape	Oval
Length (L)	80.0mm
Panel Thickness max.	0.6 - 2.5mm
for Hole ∅ (FH)	6.3 x 10.0 mm
for Panel Thickness min - max	0.6 - 2.5 mm

Downloads

Specifications

Operating Temperature

-40 °C to +105 °C, (+105 °C for 500 h)

Logistics and Packaging

Country of Origin	CN
GTIN-13 / EAN	4031026450766

More Information

ETIM 7.0 Key	EC000127
ETIM 8.0 Key	EC000127
ETIM 9.0 Key	EC000127
UNSPSC Key	39121702
