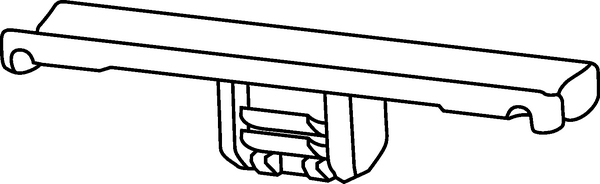

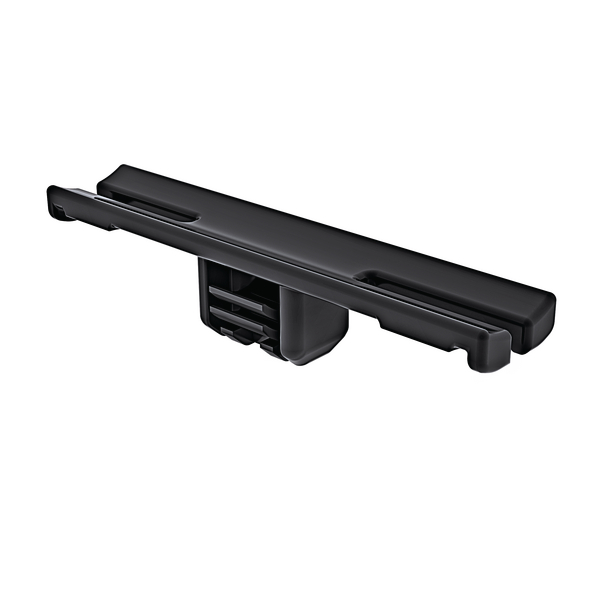

Bundling clip for hole (oval), L=40.0mm, black, 1000pcs.
Art.-No. 151-00759 | BCFT63x100S-PA66HIRHS-BK Details

  • Simple installation, tool-free
  • Is attached to the bundle element with cable ties or adhesive tape
  • The oval base geometry serves as anti-twist protection and for defined cable routing

Request your individual offer now

Application These bundling clips are mainly used in the automotive industry, particularly for the assembly of cable harnesses. They offer a simple and user-friendly method for fastening cables, hoses and pipes.
Colour Black (BK)
Fixation Method Fir Tree for oval holes
Local order number BCFT63x100S_HIRHS_M1
Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
PART DESCRIPTION BCFT63x100S-PA66HIRHS-BK
Pack Cont. 1000pcs.
Package Content packed in Bag
Product Group Bundling Clips with Fir Tree for Oval Holes
Short Description Bundling Clip, oval hole 6.5 x 10.2 mm, fir tree, high impact modified, heat stabilised, black
Type BCFT63x100S
Bundling Bar Length 40.0mm
Fixing Hole Shape Oval
Height (H) 7.5mm
Length (L) 40.0mm
Panel Thickness max. 0.6 - 2.5mm
Weight/Unit 0.00069kg
Width (W) 8.0mm
for Hole ∅ (FH) 6.5 x 10.2 mm
for Panel Thickness min - max 0.6 - 2.5 mm
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 HB
Hazardous Goods No
Operating Temperature -40 °C to +105 °C, (+105 °C for 500 h)
ROHS compliant Yes
Specifications
Country of Origin DE
Customs Number 39269097
GTIN-13 / EAN 4031026319490
Packaging 1 - Height (m) 0.15m
Packaging 1 - Length (m) 0.4m
Packaging 1 - Qty 1000
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.018
Packaging 1 - Weight (kg) 0.711993kg
Packaging 1 - Width (m) 0.3m
Packaging 3 - Height (m) 0.368m
Packaging 3 - Length (m) 0.584m
Packaging 3 - Qty 20000
Packaging 3 - Type Box
Packaging 3 - Volume (m³) 0.083
Packaging 3 - Weight (kg) 15.05986kg
Packaging 3 - Width (m) 0.386m
Packaging 4 - Height (m) 1.248m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 240000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.198
Packaging 4 - Weight (kg) 201.72kg
Packaging 4 - Width (m) 0.8m
ETIM 7.0 Key EC000127
ETIM 8.0 Key EC000127
ETIM 9.0 Key EC000127
UNSPSC Key 39121702
