23/12/2024

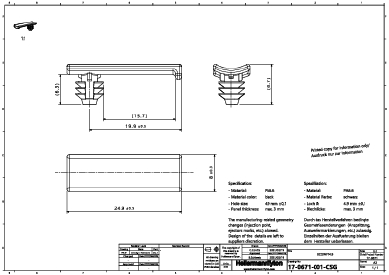

Bundling clip for hole (round), L=15.7mm, black, 2000pcs.
Art.-No. 151-02354 | BCOWFT4.9-PA66HIRHS-BK Details

Request your individual offer now

Colour Black (BK)
Foot Part Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
Local order number BCOWFT5_PA66HIRHS_BK
Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
PART DESCRIPTION BCOWFT4.9-PA66HIRHS-BK
Pack Cont. 2000pcs.
Package Content packed in Bag
Type BCOWFT4.9
Bundling Bar Length 15.7mm
Height (H) 8.75mm
Length (L) 24.9mm
Weight/Unit 0.000365kg
Width (W) 8.0mm
for Hole ∅ (FH) 4.9 mm
for Panel Thickness min - max - 3
ELV compliant Dir. Art. 4 (2) YES
Hazardous Goods No
ROHS compliant Yes
Specifications
Country of Origin PL
Customs Number 39269097
GTIN-13 / EAN 4031026606200
Packaging 1 - Height (m) 0.15m
Packaging 1 - Length (m) 0.3m
Packaging 1 - Qty 2000
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.0117
Packaging 1 - Weight (kg) 0.743862kg
Packaging 1 - Width (m) 0.26m
Packaging 3 - Height (m) 0.204m
Packaging 3 - Length (m) 0.591m
Packaging 3 - Qty 30000
Packaging 3 - Type Box
Packaging 3 - Volume (m³) 0.048
Packaging 3 - Weight (kg) 11.80793kg
Packaging 3 - Width (m) 0.398m
Packaging 4 - Height (m) 1.164m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 600000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.117
Packaging 4 - Weight (kg) 257.2kg
Packaging 4 - Width (m) 0.8m
ETIM 7.0 Key EC000127
ETIM 8.0 Key EC000127
ETIM 9.0 Key EC000127
UNSPSC Key 39121702
