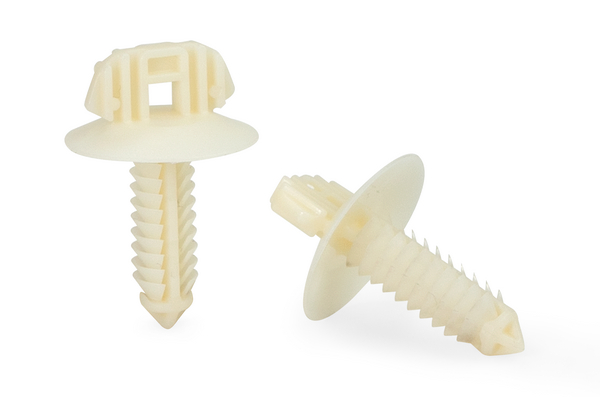

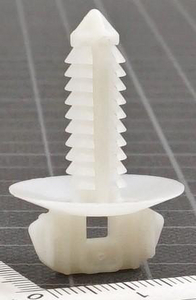

Blind plug for hole 6.1 - 6.9 mm, M8 Threaded, Polyamide 6.6, high impact modified, heat stabilised
Art.-No. 151-04242
| BPFT6.5XLR-PA66HIRHS-NA
|
Copied

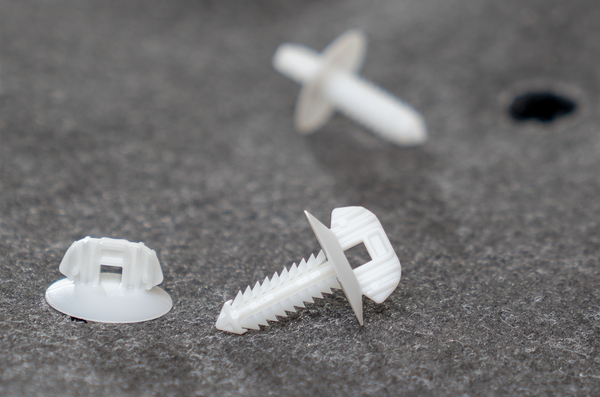

- Easy assembly without the need of a tool
- Disc of the part covers the hole and minimises ingress of dust, dirt and water
Request your individual offer now
Request quote

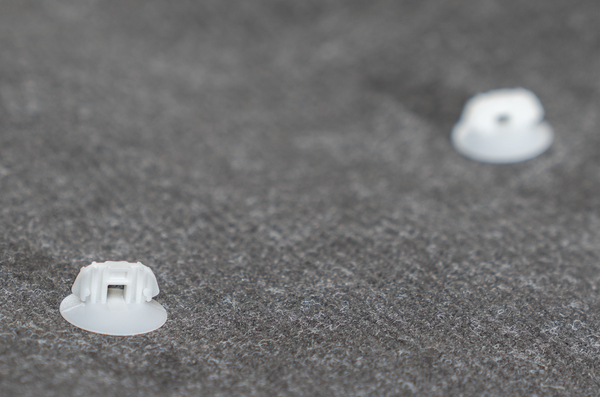

| Application | Our Blind Plugs were developed especially for the automotive industry. Application in trunks, doors, wheel housing and dash panels. Whenever needed to secure a hole against dirt or dust. Sometimes even used for optical reasons. |
| Colour | Natural (NA) |
| Local order number | BPFT6.5XLGR-PA66HIRHS-BK |
| Material | Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS) |
| PART DESCRIPTION | BPFT6.5XLR-PA66HIRHS-NA |
| Pack Cont. | 1000pcs. |
| Package Content packed in | Bag |
| Short Description | Blind plug for hole 6.1 - 6.9 mm, M8 Threaded, Polyamide 6.6, high impact modified, heat stabilised |
| Type | BPFT6.5XLR |
Download
|
|
|
| Country of Origin | DE |
| Customs Number | 39269097 |
| GTIN-13 / EAN | 4031026744322 |
| Packaging 1 - Height (m) | 0.07m |
| Packaging 1 - Length (m) | 0.425m |
| Packaging 1 - Qty | 1000 |
| Packaging 1 - Type | Bag |
| Packaging 1 - Volume (m³) | 0.00937m³ |
| Packaging 1 - Weight (kg) | 1.040815kg |
| Packaging 1 - Width (m) | 0.315m |
| Packaging 3 - Height (m) | 0.368m |
| Packaging 3 - Length (m) | 0.584m |
| Packaging 3 - Qty | 10000 |
| Packaging 3 - Type | Box |
| Packaging 3 - Volume (m³) | 0.083m³ |
| Packaging 3 - Weight (kg) | 11.22815kg |
| Packaging 3 - Width (m) | 0.386m |
| Packaging 4 - Height (m) | 1.248m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 120000 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.198m³ |
| Packaging 4 - Weight (kg) | 155.76kg |
| Packaging 4 - Width (m) | 0.8m |
