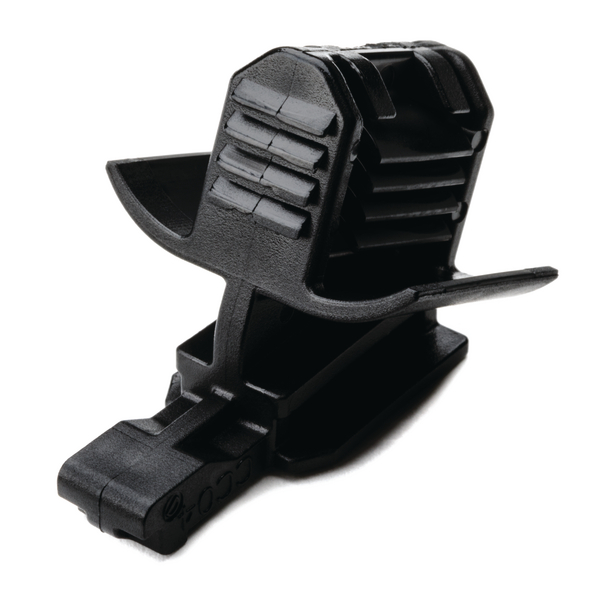

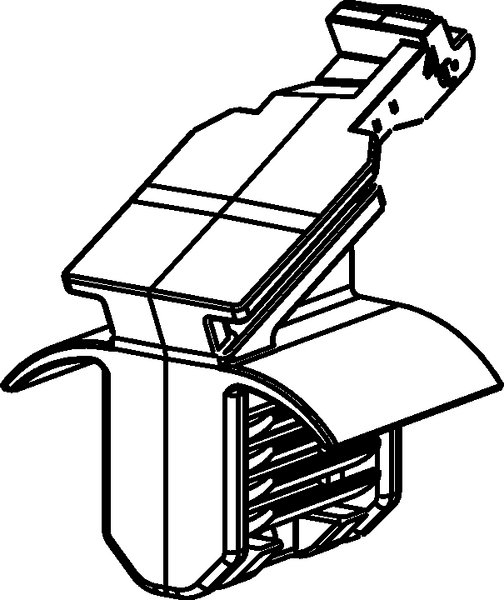

Connector clip, EWCAP-005-11, black, 7000pcs.
Art.-No. 151-00597
| CC04-PA66HIRHSUV-BK
|
Details
Request your individual offer now
Request quote
More products in this product group:
| Colour | Black (BK) |
| Fixation Method | Fir Tree |
| Local order number | CC04 |
| Material | Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV) |
| PART DESCRIPTION | CC04-PA66HIRHSUV-BK |
| Pack Cont. | 7000pcs. |
| Package Content packed in | Carton |
| Product Group | Connector Clips for oval holes |
| Short Description | Connector Clip, oval hole 8.0 x 15.0 mm, fir tree, high impact modified, heat and UV-stabilised, black |
| Type | CC04 |
Download
| CE Certification | No |
| CSA Certified | No |
| ELV compliant Dir. Art. 4 (2) | YES |
| Flammability | UL 94 HB |
| Hazardous Goods | No |
| Operating Temperature | -40 °C to +105 °C, (+105 °C for 500 h) |
| ROHS compliant | Yes |
| Specifications |
|
| UL Listed (US and Canada) | No |
| UL Listed (US and Canada) | No |
| UL Recognized (US and Canada) | No |
| UL Recognized (US and Canada) | No |
| UV-Stabilised | Yes |
|
|
|
| Country of Origin | US |
| Customs Number | 39269097 |
| GTIN-13 / EAN | 4031026334769 |
| Packaging 1 - Qty | 1000 |
| Packaging 1 - Type | Bag |
| Packaging 1 - Weight (kg) | 2.01kg |
| Packaging 3 - Height (m) | 0.219075m |
| Packaging 3 - Length (m) | 0.606425m |
| Packaging 3 - Qty | 7000 |
| Packaging 3 - Type | Box |
| Packaging 3 - Volume (m³) | 0.0529m³ |
| Packaging 3 - Weight (kg) | 14.84kg |
| Packaging 3 - Width (m) | 0.3984625m |
| Packaging 4 - Height (m) | 1.239m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 105000 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.189m³ |
| Packaging 4 - Weight (kg) | 243.6kg |
| Packaging 4 - Width (m) | 0.8m |
