Connector clip for connector/for hole (round), EWCAP-005-11, black, 500pcs.
Art.-No. 151-03963
| CC11FT6.5FT5-PA66HIRHS-BK
|
Copied
- Connector easily installed by simply pushing into place
- Connection can be released (non-destructive)
- One fir tree foot part can be used for a variety of panel thicknesses
- Disc covers the hole to prevent dirt and water gaining access
- For twist protection: Variants with additional stick or for oval holes
Request your individual offer now
Request quote
| Application | The connector clips used here have been designed for electronic cables and cable sets used in the automotive industry. |
| Colour | Black (BK) |
| Fixation Method | Fir Tree |
| Local order number | CC11FT6.5FT5-PA66HIRHS-BK |
| Material | Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS) |
| PART DESCRIPTION | CC11FT6.5FT5-PA66HIRHS-BK |
| Pack Cont. | 500pcs. |
| Type | CC11FT6.5FT5 |
| Type of connection | USCAR11 |
| Variant | 11 mm USCAR Connector Clip |

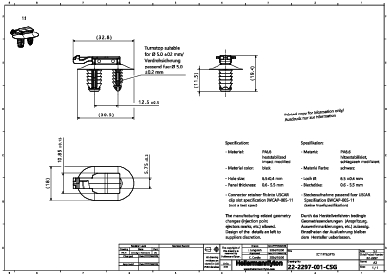

| Fixing Hole Centres (F) | 12.5mm |
| Height (H) | 19.4mm |
| Height (H2) | 11.5mm |
| Length (L) | 30.5mm |
| Length (L2) | 32.8mm |
| Panel Thickness max. | 0.6 - 5.5mm |
| Weight/Unit | 0.001199kg |
| Width (W) | 18.0mm |
| Width (W2) | 10.85mm |
| Width (W3) | 5.75mm |
| for Hole ⌀ (FH) | 6.1 - 6.9 mm, 4.8 - 5.2 mm |
| for Panel Thickness min - max | 0.6 - 5.5 mm |
Download
|
|
|
| Country of Origin | PL |
| Customs Number | 39269097 |
| GTIN-13 / EAN | 4031026713113 |
| Packaging 1 - Height (m) | 0.1m |
| Packaging 1 - Length (m) | 0.45m |
| Packaging 1 - Qty | 1500 |
| Packaging 1 - Type | Bag |
| Packaging 1 - Volume (m³) | 0.01755m³ |
| Packaging 1 - Weight (kg) | 1.827635kg |
| Packaging 1 - Width (m) | 0.39m |
| Packaging 3 - Height (m) | 0.204m |
| Packaging 3 - Length (m) | 0.591m |
| Packaging 3 - Qty | 4500 |
| Packaging 3 - Type | Box |
| Packaging 3 - Volume (m³) | 0.048m³ |
| Packaging 3 - Weight (kg) | 6.444905kg |
| Packaging 3 - Width (m) | 0.398m |
| Packaging 4 - Height (m) | 1.204m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 90000 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.156m³ |
| Packaging 4 - Weight (kg) | 149.89kg |
| Packaging 4 - Width (m) | 0.8m |
