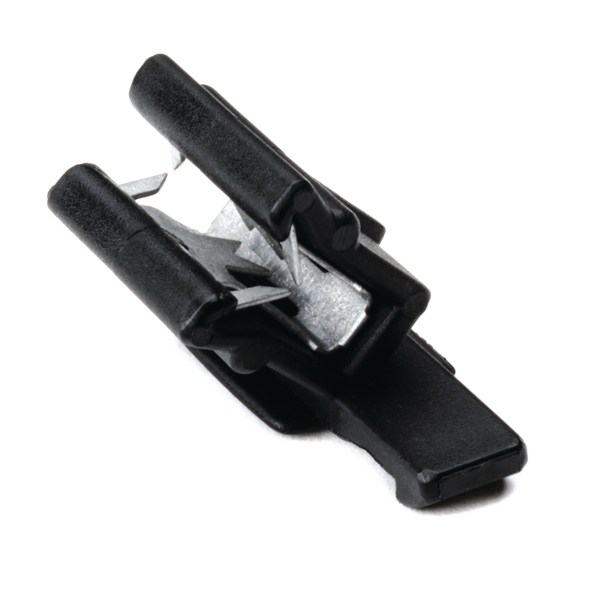

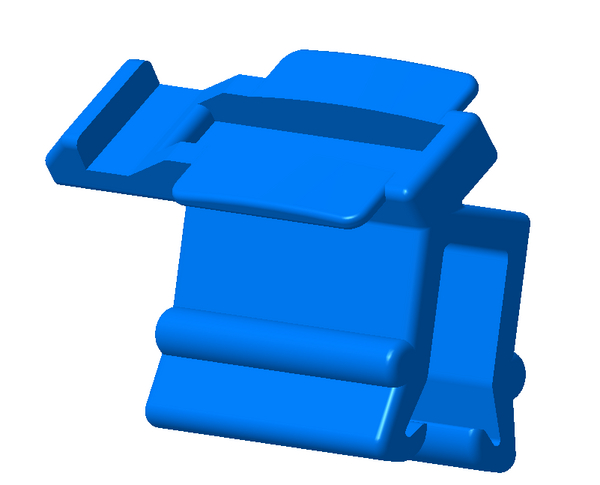

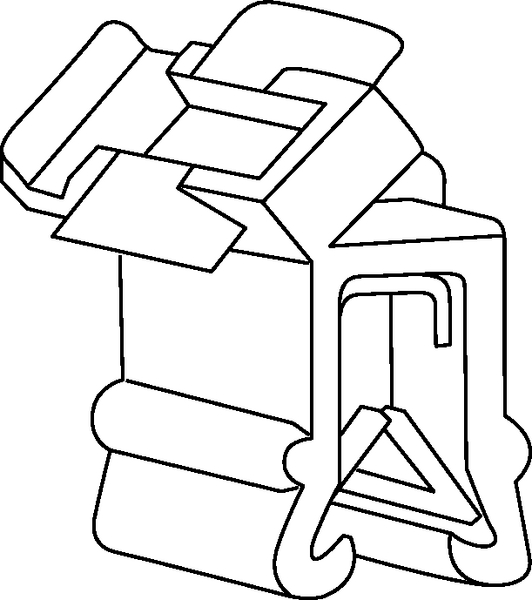

Connector clip for edge, black, 1000pcs.
Art.-No. 151-00611 | CCEC3.0TP-PA66HIRHS-BK |  Details

    • Simply push per hand onto a plastic edge
    • Connector easily installed by simply pushing into place
    • Connection can be released (non-destructive)
    • Integrated metal clamp holds clip firmly in place
    • Clamp consists of double tempered spring steel
    • Ideal for applications where holes or adhesives are not suitable
    Show more
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads CAD-Download Datasheet
    Colour Black (BK)
    Fixation Method Edge Clip
    Local order number CCEC3.0TP-HIRHS-BK-M1
    Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    PART DESCRIPTION CCEC3.0TP-PA66HIRHS-BK

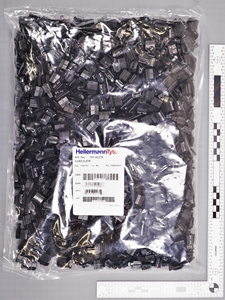

    Pack Cont. 1000pcs.
    Package Content packed in Bag
    Product Group Connector Clips for Edges
    Short Description Connector Clip, edge, high impact modified, heat stabilised, black
    Type CCEC3.0TP

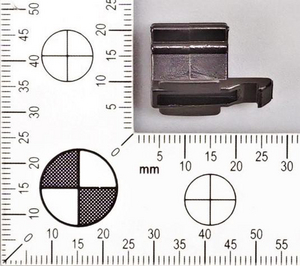

    Height (H) 11.9mm
    Length (L) 23.5mm
    Panel Thickness max. 1.0 - 3.0mm
    Weight/Unit 0.0017kg
    Width (W) 10.4mm
    for Panel Thickness min - max 1 - 3 mm
    ELV compliant Dir. Art. 4 (2) YES
    Flammability UL 94 HB
    Hazardous Goods No
    Operating Temperature -40 °C to +105 °C, (+105 °C for 500 h)
    ROHS compliant Yes
    Specifications
    Country of Origin DE
    Customs Number 39269097
    GTIN-13 / EAN 4031026289663
    Packaging 1 - Height (m) 0.15m
    Packaging 1 - Length (m) 0.3m
    Packaging 1 - Qty 1000
    Packaging 1 - Type Bag
    Packaging 1 - Volume (m³) 0.01845m³
    Packaging 1 - Weight (kg) 1.721815kg
    Packaging 1 - Width (m) 0.41m
    Packaging 3 - Height (m) 0.204m
    Packaging 3 - Length (m) 0.591m
    Packaging 3 - Qty 10000
    Packaging 3 - Type Box
    Packaging 3 - Volume (m³) 0.048m³
    Packaging 3 - Weight (kg) 17.86815kg
    Packaging 3 - Width (m) 0.398m
    Packaging 4 - Height (m) 1.164m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 200000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.117m³
    Packaging 4 - Weight (kg) 378.4kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000449
    ETIM 8.0 Key EC000449
    ETIM 9.0 Key EC000449
    UNSPSC Key 39121702
