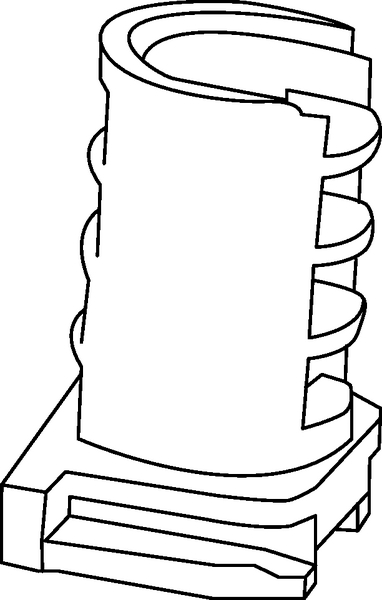

Connector clip, black, 500pcs.
Art.-No. 151-01698 | CCSBS6-PA66HIRHS-BK |  Details

Connector clip with passive locking device for 6 mm weld studs.

    • Connector easily installed by simply pushing into place
    • Connection can be released (non-destructive)
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Application The Connector Clips used here have been designed for electronic cables and cable sets used in the automotive industry. The Connector Clips are related to a Connector and then secured to a surface depending on the requirement.
    Colour Black (BK)
    Local order number CCSBS6-PA66HIRHS-BK
    Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    PART DESCRIPTION CCSBS6-PA66HIRHS-BK
    Pack Cont. 500pcs.
    Package Content packed in Bag
    Product Family with Stud
    Product Group Connector clips for weld studs
    Type CCSBS6
    Height (H) 18.6mm
    Length (L) 16.0mm
    Stud ∅ 6.0 mm
    Weight/Unit 0.00093kg
    Width (W) 10.8mm
    ELV compliant Dir. Art. 4 (2) YES
    Hazardous Goods No
    ROHS compliant Yes
    Specifications
    Country of Origin CN
    Customs Number 39269097
    GTIN-13 / EAN 4031026570372
    Packaging 1 - Height (m) 0.555m
    Packaging 1 - Length (m) 0.39m
    Packaging 1 - Qty 1500
    Packaging 1 - Type Bag
    Packaging 1 - Volume (m³) 0.06494m³
    Packaging 1 - Weight (kg) 1.395001kg
    Packaging 1 - Width (m) 0.3m
    Packaging 3 - Height (m) 0.2m
    Packaging 3 - Length (m) 0.59m
    Packaging 3 - Qty 12000
    Packaging 3 - Type Box
    Packaging 3 - Volume (m³) 0.046m³
    Packaging 3 - Weight (kg) 11.980008kg
    Packaging 3 - Width (m) 0.39m
    Packaging 4 - Height (m) 1.144m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 240000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.098m³
    Packaging 4 - Weight (kg) 260.6kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000127
    ETIM 8.0 Key EC000127
    ETIM 9.0 Key EC000127
    UNSPSC Key 39121702
