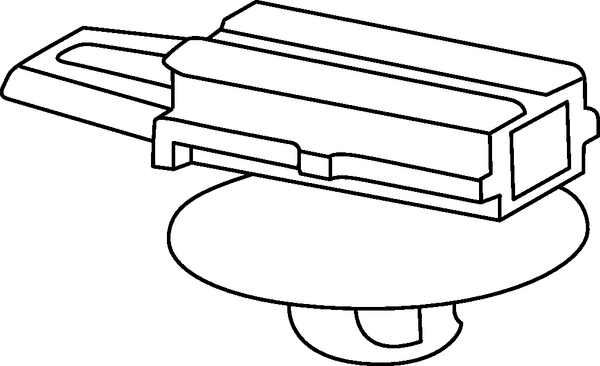

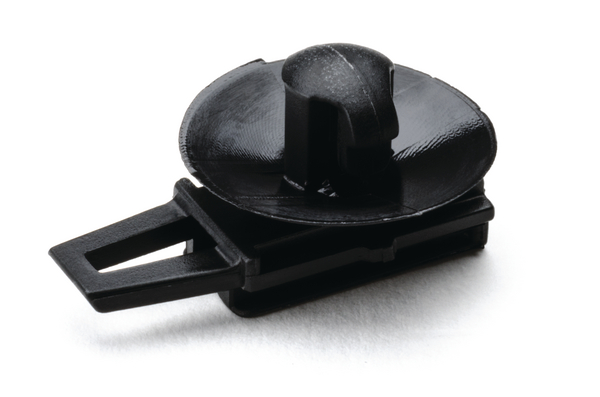

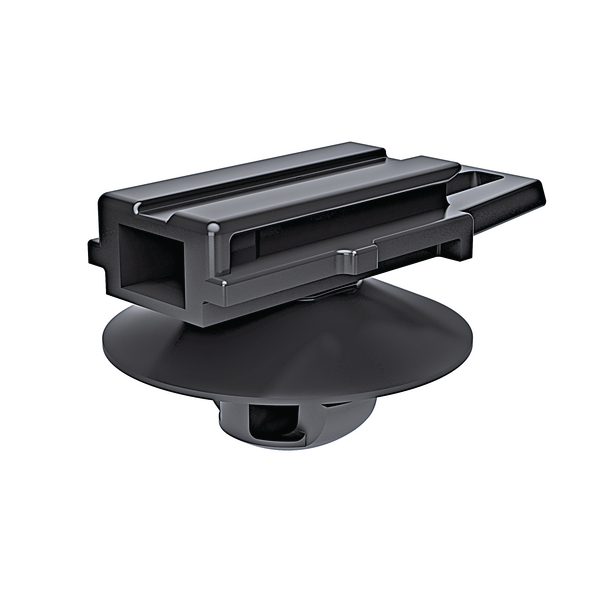

Connector clip for hole (round), EWCAP-005-7, black, 5000pcs.
Art.-No. 151-00775 | CCSFT6.5-PA66HIRHS-BK Details

  • Connector easily installed by simply pushing into place
  • Connection can be released (non-destructive)
  • Arrowhead locks into place for secure fixing at all times

Request your individual offer now

Colour Black (BK)
Fixation Method arrowhead
Local order number CCSFT6.5_HIRHS_H1
Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
PART DESCRIPTION CCSFT6.5-PA66HIRHS-BK
Pack Cont. 5000pcs.
Package Content packed in Bag
Product Group Connector Clips for round holes
Short Description Connector Clip, round hole 6.3 - 6.7 mm, arrow head, high impact modified, heat stabilised, black
Type CCSFT6.5
Disc ∅ 16.0mm
Fixing Hole Shape Oval
Height (H) 12.1mm
Length (L) 23.0mm
Panel Thickness max. 1.7 - 2.3mm
Weight/Unit 0.000575kg
Width (W) 16.1mm
for Hole ∅ (FH) 6.3 - 6.7 mm
for Panel Thickness min - max 1.7 - 2.3 mm
CE Certification No
CSA Certified No
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 HB
Hazardous Goods No
Operating Temperature -40 °C to +105 °C, (+105 °C for 500 h)
ROHS compliant Yes
Specifications
UL Listed (US and Canada) No
UL Listed (US and Canada) No
UL Recognized (US and Canada) No
UL Recognized (US) No
UV-Stabilised No
Country of Origin FR
Customs Number 39269097
GTIN-13 / EAN 4031026324845
Packaging 1 - Height (m) 0.8m
Packaging 1 - Length (m) 0.6m
Packaging 1 - Qty 5000
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.192
Packaging 1 - Weight (kg) 2.940411kg
Packaging 1 - Width (m) 0.4m
Packaging 3 - Height (m) 0.171m
Packaging 3 - Length (m) 0.56m
Packaging 3 - Qty 5000
Packaging 3 - Type Box
Packaging 3 - Volume (m³) 0.0172
Packaging 3 - Weight (kg) 3.160411kg
Packaging 3 - Width (m) 0.18m
Packaging 4 - Height (m) 1.17m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 240000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.123
Packaging 4 - Weight (kg) 172.68kg
Packaging 4 - Width (m) 0.8m
ETIM 7.0 Key EC000449
ETIM 8.0 Key EC000449
ETIM 9.0 Key EC000449
UNSPSC Key 39121702
