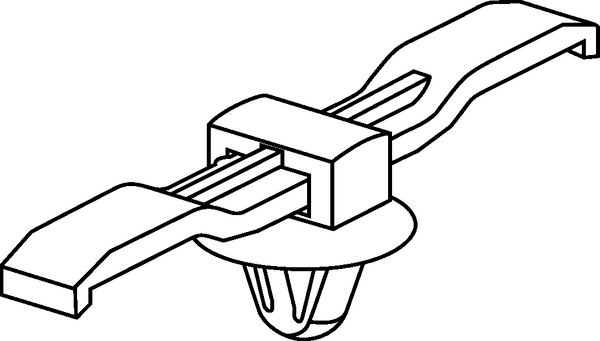

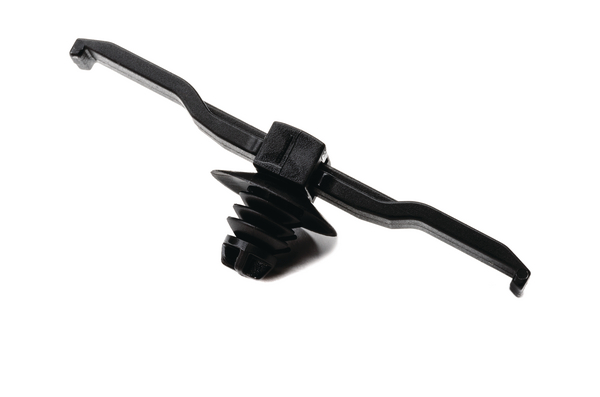

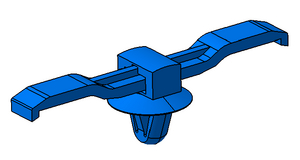

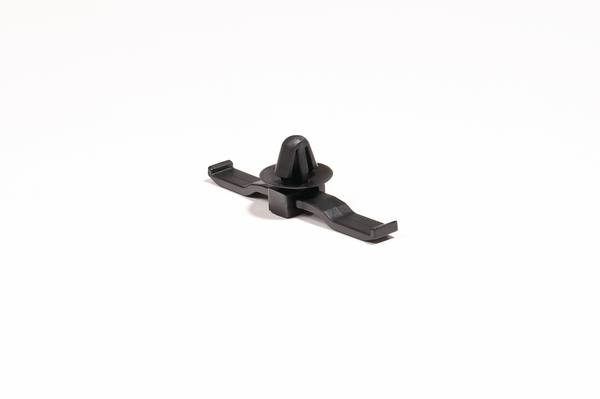

Bundling clip for hole (round), L=54.0mm, black, 500pcs.
Art.-No. 150-08110 | CHA1-PA66HS-BK Details

  • Easy to install without the need for a tool
  • Horizontal length tolerance compensation
  • Ideal if holes do not fit registration or bundles need to be routed around corners

Request your individual offer now

Application An easy means of routing and securing cable sets in various parts of cars. These parts allow an adjustment motion to guide cable bundles safely and without damaging the cable insulation.
Anti rotation (Yes / No) NO
Colour Black (BK)
Fixation Method arrowhead
Local order number CHA1.NB6P
Material Polyamide 6.6, heat stabilised (PA66HS)
PART DESCRIPTION CHA1-PA66HS-BK
Pack Cont. 500pcs.
Package Content packed in Bag
Product Family for lateral adjustment
Product Group Bundling clips for round holes with arrowhead
Short Description Moveable Bundling Clip with Arrowhead 54x6.0 mm, black
Type CHA1
Wings on clip base (Yes / No) YES
Bundling Bar Length 2.13"
Bundling Bar Length 54.0mm
Height (H) 7.7mm
Height (H2) 8.2mm

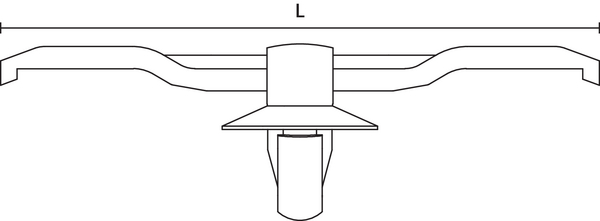

Length (L) 54.0mm
Panel Thickness max. 0.5 - 1.2mm
Weight/Unit 0.001257kg

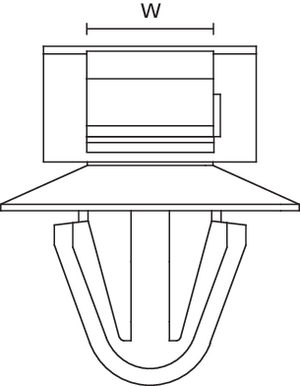

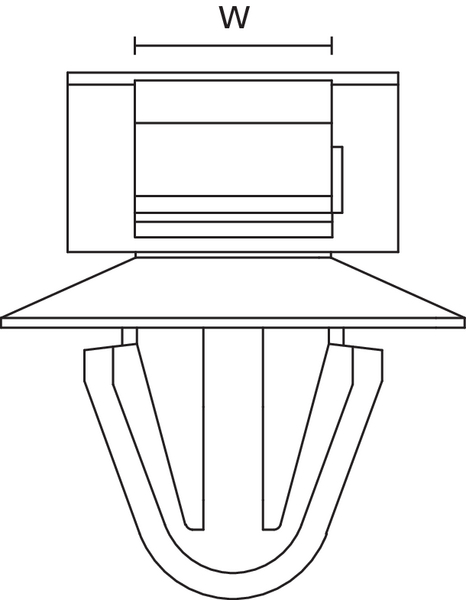

Width (W) 6.0mm
for Hole ∅ (FH) 6.3 - 7.0 mm
for Panel Thickness min - max 0.5 - 1.2 mm
CE Certification No
CSA Certified No
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 V2
Hazardous Goods No
Operating Temperature -40 °C to +105 °C, (+105 °C for 500 h)
ROHS compliant Yes
Specifications
UL Listed (US and Canada) No
UL Listed (US and Canada) No
UL Recognized (US and Canada) No
UL Recognized (US) No
UV-Stabilised No
Country of Origin CN
Customs Number 39269097
GTIN-13 / EAN 4031026207551
Packaging 1 - Height (m) 0.15m
Packaging 1 - Length (m) 0.3m
Packaging 1 - Qty 500
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.0117
Packaging 1 - Weight (kg) 0.6485kg
Packaging 1 - Width (m) 0.26m
Packaging 3 - Height (m) 0.36m
Packaging 3 - Length (m) 0.59m
Packaging 3 - Qty 10000
Packaging 3 - Type Box
Packaging 3 - Volume (m³) 0.0828
Packaging 3 - Weight (kg) 13.625kg
Packaging 3 - Width (m) 0.39m
Packaging 4 - Height (m) 1.224m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 120000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.175
Packaging 4 - Weight (kg) 184.5kg
Packaging 4 - Width (m) 0.8m
ETIM 7.0 Key EC000127
ETIM 8.0 Key EC000127
ETIM 9.0 Key EC000127
UNSPSC Key 39121717
