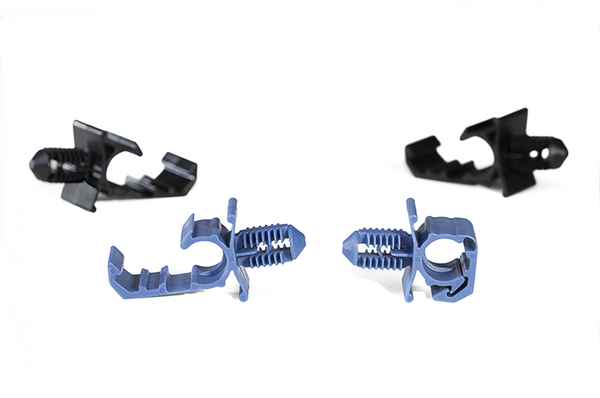

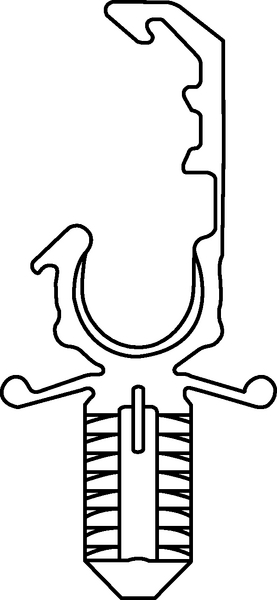

Corrugated tube clip for hole (round)/with pipe/tube holder, nom∅7.0mm, blue, 500pcs.
Art.-No. 151-01177 | CNCTC8FT6.5LG-PA66HIRHS-BU |  Details

CNCTC8FT6.5LG Clamps.

    • CTC clamps for a variety of nominal diameters
    • Fir tree foot part can be used for a variety of panel thicknesses
    • Suitable for use within threaded holes
    • Tube is guided accurately by clicking
    • Axial slipping is prevented by the inside profile of the clamp
    Show more
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads Datasheet
    Application CTC clamps are used for example in the automobile, harness making, electrical industry and wherever corrugated tubing has to be quickly and firmly fixed.
    Colour Blue (BU)
    Fixation Method Fir Tree
    Key product features for convoluted tubes or with rib, removable, lockable
    Local order number CNCTC8FT6.5LG-HIRHS-BU
    Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    PART DESCRIPTION CNCTC8FT6.5LG-PA66HIRHS-BU
    Pack Cont. 500pcs.
    Package Content packed in Bag
    Product Family CNCTC-Series with cover
    Product Group Fixing Elements for Tubes and Harnesses
    Short Description Convoluted Tubing Clip, round holes 6.5 - 6.7 mm, fir tree, high impact modified, heat stabilised, blue

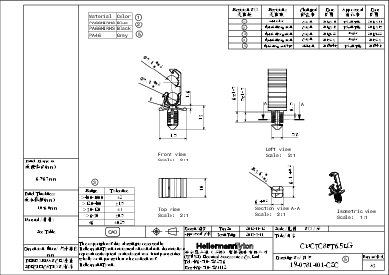

    Type CNCTC8FT6.5LG
    Attach to Ø 7.1
    Bundle Diameter max (metric) 6.7mm
    Bundle ∅ 6.5-6.7mm
    Bundle ∅ min. 6.5mm
    Height (H) 32.5mm
    Height (H2) 11.4mm
    Length (L) 15.0mm
    Nominal ∅ 7.0mm
    Panel Thickness max. 1.0-6.0mm
    Weight/Unit 0.00075kg
    Width (W) 10.0mm
    for Hole ∅ (FH) 6.5 - 6.7 mm
    for Panel Thickness min - max 1 - 6 mm
    ELV compliant Dir. Art. 4 (2) YES
    Hazardous Goods No
    ROHS compliant Yes
    Specifications
    Country of Origin CN
    Customs Number 39269097
    GTIN-13 / EAN 4031026465913
    Packaging 1 - Qty 500
    Packaging 1 - Type Bag
    Packaging 1 - Weight (kg) 0.375kg
    Packaging 3 - Height (m) 0.2m
    Packaging 3 - Length (m) 0.59m
    Packaging 3 - Qty 8000
    Packaging 3 - Type Box
    Packaging 3 - Volume (m³) 0.046m³
    Packaging 3 - Weight (kg) 6.82kg
    Packaging 3 - Width (m) 0.39m
    Packaging 4 - Height (m) 1.144m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 160000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.098m³
    Packaging 4 - Weight (kg) 157.4kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000464
    ETIM 8.0 Key EC000464
    ETIM 9.0 Key EC000464
    UNSPSC Key 39121702
