08/11/2024

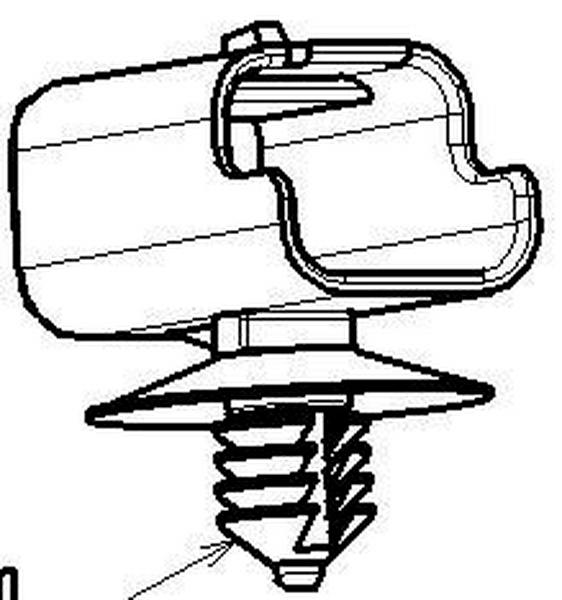

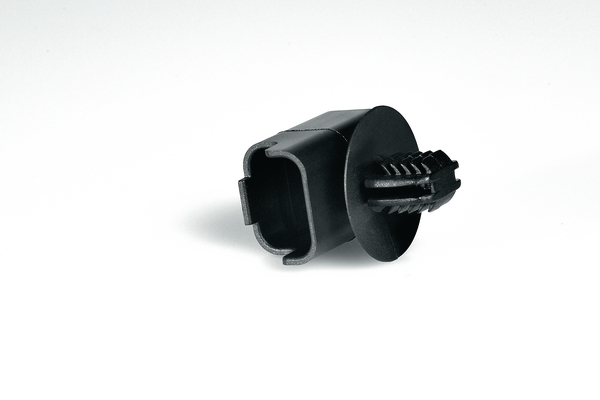

Protection cap for connectors, black, 600pcs.
Art.-No. 151-00216 | CP2FT6-PA66HIRHS-BK |  Details

    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads CAD-Download Datasheet
    Colour Black (BK)
    Fixation Method Fir Tree
    Local order number 62SICMA2V.N6HSBEP
    Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    PART DESCRIPTION CP2FT6-PA66HIRHS-BK
    Pack Cont. 600pcs.
    Package Content packed in Carton
    Product Group Connector Clips for round holes
    Short Description Connector Clip, round hole 6.2 - 6.5 mm, fir tree, high impact modified, heat stabilised, black
    Type CP2FT6
    Disc ∅ 20.0mm
    Height (H) 23.9mm
    Weight/Unit 0.001922kg
    for Hole ∅ (FH) 6.2 - 6.5 mm
    for Panel Thickness min - max 0.7 - 5 mm
    ELV compliant Dir. Art. 4 (2) YES
    Flammability UL 94 HB
    Hazardous Goods No
    Operating Temperature -40 °C to +105 °C, (+105 °C for 500 h)
    ROHS compliant Yes
    Specifications
    Country of Origin FR
    Customs Number 39269097
    GTIN-13 / EAN 4031026265766
    Packaging 1 - Height (m) 0.135m
    Packaging 1 - Length (m) 0.37m
    Packaging 1 - Qty 600
    Packaging 1 - Type Bag
    Packaging 1 - Volume (m³) 0.01399m³
    Packaging 1 - Weight (kg) 1.153201kg
    Packaging 1 - Width (m) 0.28m
    Packaging 2 - Type Bag
    Packaging 3 - Height (m) 0.15m
    Packaging 3 - Length (m) 0.4m
    Packaging 3 - Qty 600
    Packaging 3 - Type Box
    Packaging 3 - Volume (m³) 0.018m³
    Packaging 3 - Weight (kg) 1.522201kg
    Packaging 3 - Width (m) 0.3m
    Packaging 4 - Height (m) 1.194m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 33600
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.146m³
    Packaging 4 - Weight (kg) 106.243kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000127
    ETIM 8.0 Key EC000127
    ETIM 9.0 Key EC000127
    UNSPSC Key 39121702
