08/11/2024

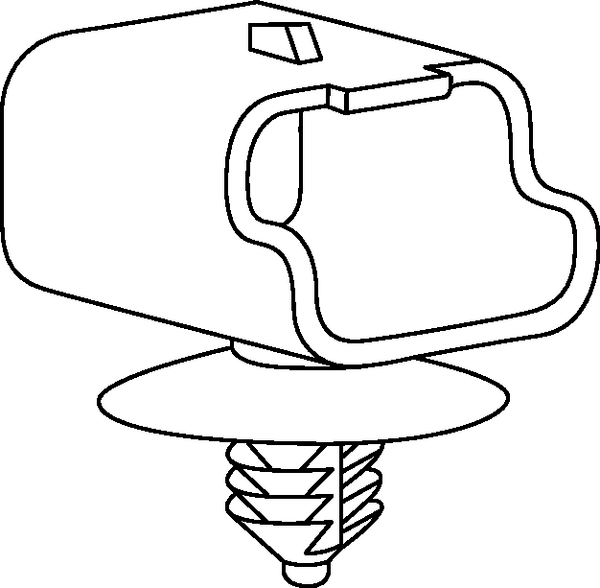

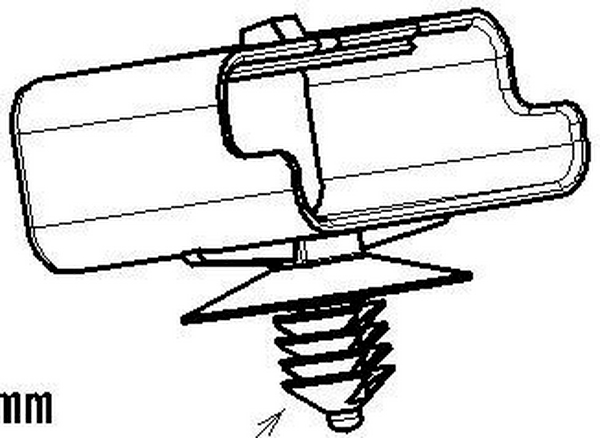

Protection cap for connectors, black, 550pcs.
Art.-No. 151-00162 | CP6FT6-PA6HIR-BK |  Details

    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads CAD-Download Datasheet
    Colour Black (BK)
    Fixation Method Fir Tree
    Local order number 9645402680.NB9A
    Material Polyamide 6, high impact modified (PA6HIR)
    PART DESCRIPTION CP6FT6-PA6HIR-BK
    Pack Cont. 550pcs.
    Package Content packed in Carton
    Product Group Connector Clips for round holes
    Short Description Connector Clip, round hole 6.2 - 6.5 mm, fir tree, high impact modified, black
    Type CP6FT6
    Disc ∅ 20.0mm
    Height (H) 25.5mm
    Weight/Unit 0.003555kg
    for Hole ∅ (FH) 6.2 - 6.5 mm
    for Panel Thickness min - max 0.7 - 5 mm
    ELV compliant Dir. Art. 4 (2) YES
    Flammability UL 94 HB
    Hazardous Goods No
    Operating Temperature -40 °C to +105 °C, (+145 °C, 500 h)
    ROHS compliant Yes
    Specifications
    Country of Origin FR
    Customs Number 39269097
    GTIN-13 / EAN 4031026301167
    Packaging 3 - Height (m) 0.15m
    Packaging 3 - Length (m) 0.4m
    Packaging 3 - Qty 550
    Packaging 3 - Type Box
    Packaging 3 - Volume (m³) 0.018m³
    Packaging 3 - Weight (kg) 2.32425kg
    Packaging 3 - Width (m) 0.3m
    Packaging 4 - Height (m) 1.194m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 30800
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.146m³
    Packaging 4 - Weight (kg) 151.158kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000127
    ETIM 8.0 Key EC000127
    ETIM 9.0 Key EC000127
    UNSPSC Key 39121702
