22/12/2024

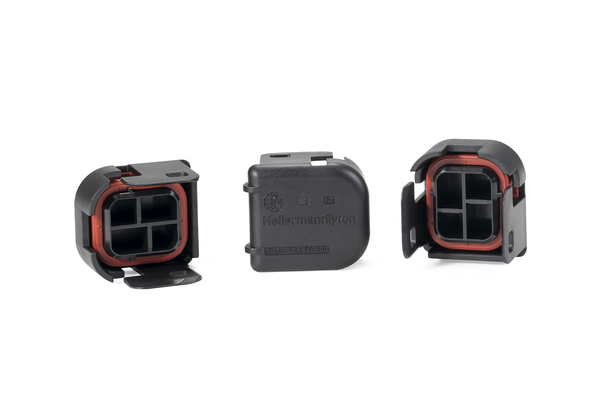

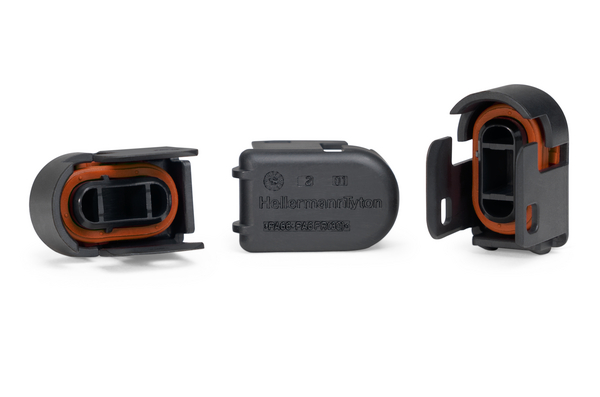

Protection cap for connectors, black, 3000pcs.
Art.-No. 151-02849 | CPBM-PA66/PA6FR-BK |  Details

Protection cap male.

    • General and transportation assurance
    • Protection of plug connection against splashing water, dust and dirt
    Package size
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads

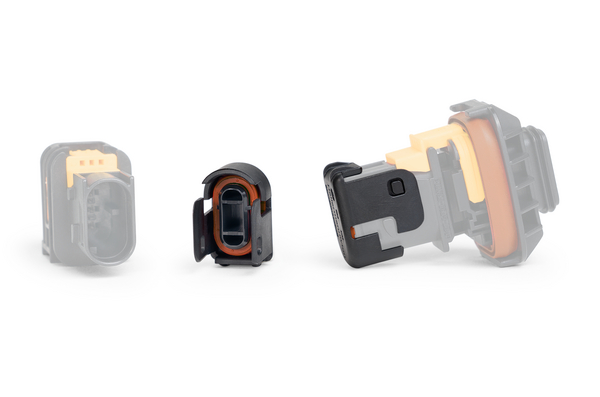

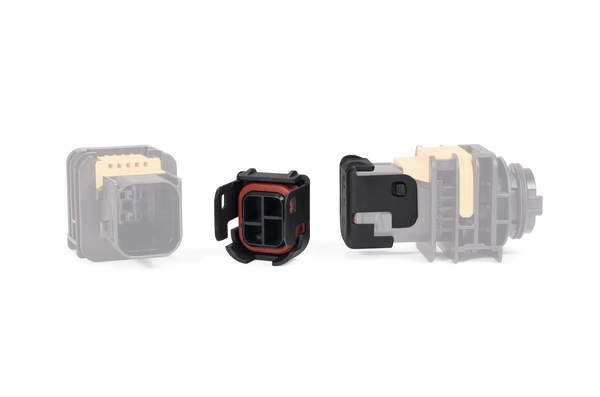

    Application In order to store or transport a connector safely, the connection pins must be protected from splashing water and dirt.
    Colour Black (BK)
    Local order number CPCM PA66 PA6FR BK
    Material Polyamide 6.6 (PA66), Polyamide 6, flame retardant (PA6FR)
    PART DESCRIPTION CPBM-PA66/PA6FR-BK
    Pack Cont. 3000pcs.
    Package Content packed in Bag
    Product Family Protection Cap B, male CTCS-series
    Product Group Connector Accessory Protection Caps, Group B
    Type CPBM

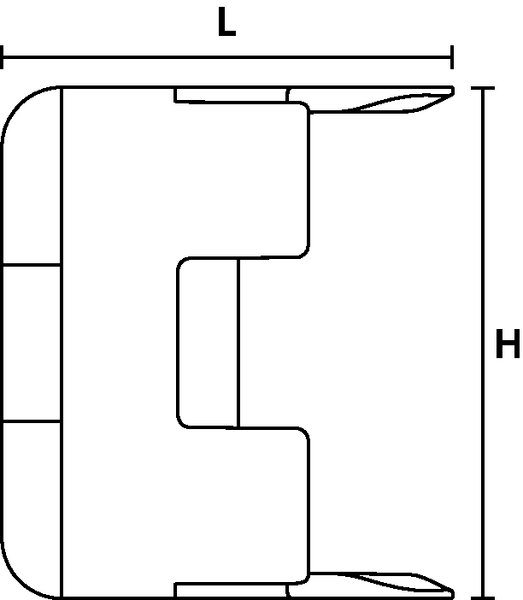

    Height (H) 18.7mm
    Length (L) 24.45mm
    Weight/Unit 0.002774kg

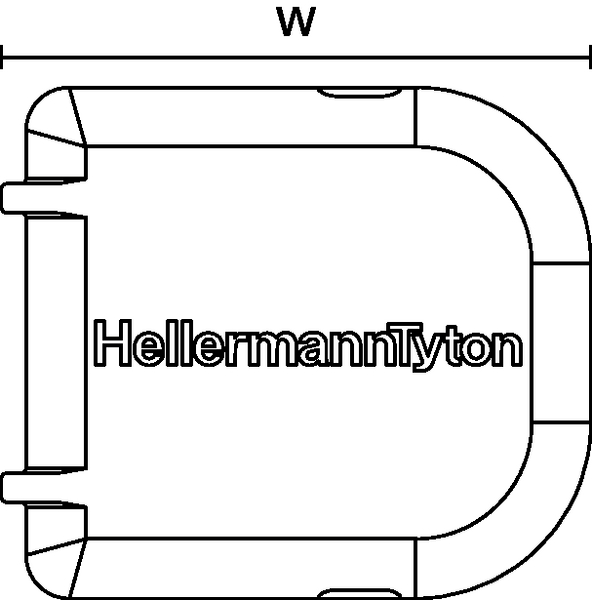

    Width (W) 21.2mm
    ELV compliant Dir. Art. 4 (2) YES
    Hazardous Goods No
    ROHS compliant Yes
    Specifications
    Country of Origin PL
    Customs Number 39269097
    GTIN-13 / EAN 4031026620046
    Packaging 1 - Height (m) 0.8m
    Packaging 1 - Length (m) 0.6m
    Packaging 1 - Qty 3000
    Packaging 1 - Type Bag
    Packaging 1 - Volume (m³) 0.192m³
    Packaging 1 - Weight (kg) 8.387411kg
    Packaging 1 - Width (m) 0.4m
    Packaging 3 - Height (m) 0.184m
    Packaging 3 - Length (m) 0.58m
    Packaging 3 - Qty 3000
    Packaging 3 - Type Box
    Packaging 3 - Volume (m³) 0.0406m³
    Packaging 3 - Weight (kg) 8.987411kg
    Packaging 3 - Width (m) 0.38m
    Packaging 4 - Height (m) 1.248m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 72000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.198m³
    Packaging 4 - Weight (kg) 236.688kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000127
    ETIM 8.0 Key EC000127
    ETIM 9.0 Key EC000127
    UNSPSC Key 39121702
