24/11/2024

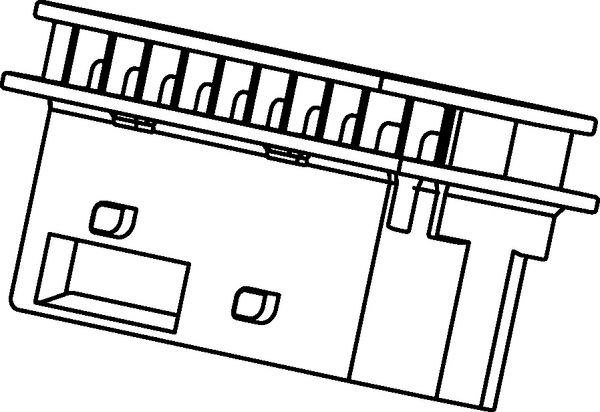

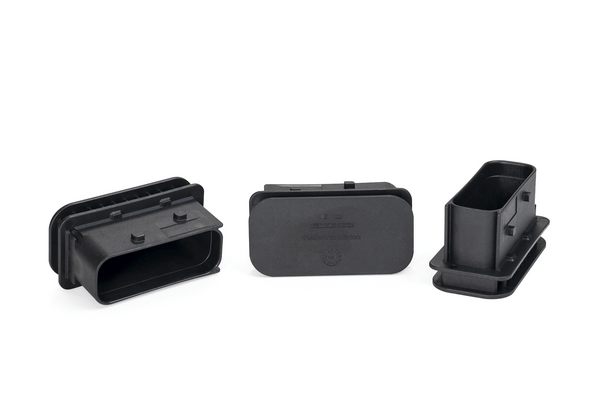

Protection cap for connectors, black, 800pcs.
Art.-No. 151-02924 | CPEF-PBTGF30-BK Details

  • General and transportation assurance
  • Protection of plug connection against splashing water, dust and dirt

Request your individual offer now

Application In order to store or transport a connector safely, the connection pins must be protected from splashing water and dirt.
Colour Black (BK)
Local order number Protect. cap fem E-PBTGF30-BK
Material Polybutylene Terephthalate glass-fibre reinforced (PBTGF30)
PART DESCRIPTION CPEF-PBTGF30-BK
Pack Cont. 800pcs.
Package Content packed in Bag
Product Family Protection Cap E, female CTCS-series
Product Group Connector Accessory Protection Caps, Group E
Type CPEF
Height (H) 26.7mm
Height (H2) 18.0mm
Length (L) 27.3mm
Weight/Unit 0.01173kg
Width (W) 52.1mm
Width (W2) 45.2mm
ELV compliant Dir. Art. 4 (2) YES
Hazardous Goods No
ROHS compliant Yes
Specifications
Country of Origin PL
Customs Number 39269097
GTIN-13 / EAN 4031026623696
Packaging 1 - Height (m) 0.8m
Packaging 1 - Length (m) 0.6m
Packaging 1 - Qty 800
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.192
Packaging 1 - Weight (kg) 9.449411kg
Packaging 1 - Width (m) 0.4m
Packaging 3 - Height (m) 0.204m
Packaging 3 - Length (m) 0.591m
Packaging 3 - Qty 800
Packaging 3 - Type Box
Packaging 3 - Volume (m³) 0.048
Packaging 3 - Weight (kg) 10.099411kg
Packaging 3 - Width (m) 0.398m
Packaging 4 - Height (m) 1.164m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 16000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.117
Packaging 4 - Weight (kg) 222.98kg
Packaging 4 - Width (m) 0.8m
ETIM 7.0 Key EC000127
ETIM 8.0 Key EC000127
ETIM 9.0 Key EC000127
UNSPSC Key 39121702
