Protection cap for connectors, black, 2000
Art.-No. 151-02855 | CPEM-PA66/PA6FR-BK |  Details

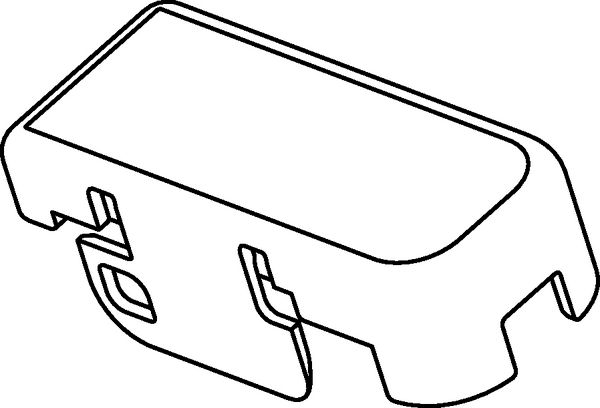

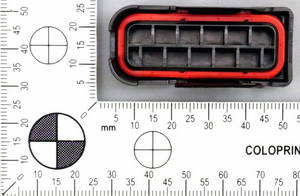

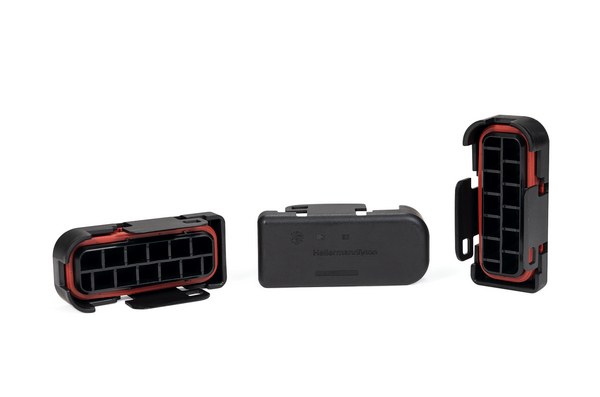

Protection cap male.

    • General and transportation assurance
    • Protection of plug connection against splashing water, dust and dirt
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Application In order to store or transport a connector safely, the connection pins must be protected from splashing water and dirt.
    Colour Black (BK)
    Local order number CPBF PBTGF30
    Material Polyamide 6.6 (PA66), Polyamide 6, flame retardant (PA6FR)
    PART DESCRIPTION CPEM-PA66/PA6FR-BK
    Pack Cont. 2000

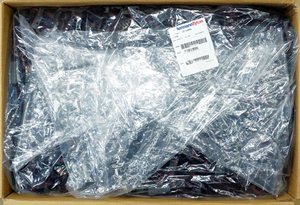

    Package Content packed in Box
    Product Family Protection Cap E, male CTCS-series
    Product Group Connector Accessory Protection Caps, Group E
    Type CPEM

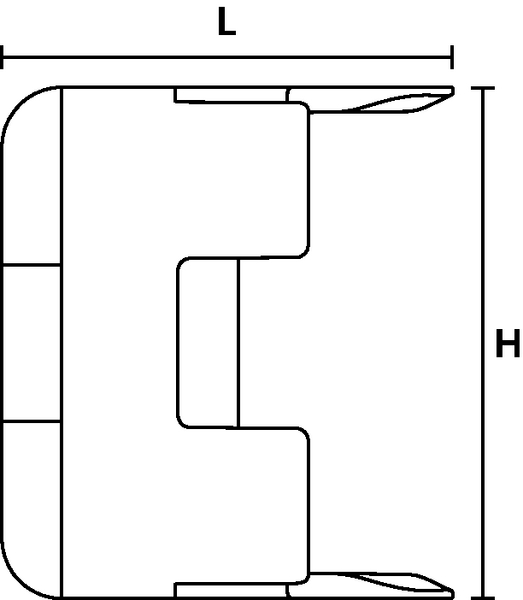

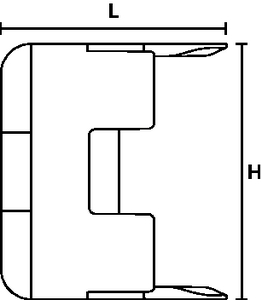

    Height (H) 17.0mm
    Length (L) 48.45mm
    Weight/Unit 0.00538kg

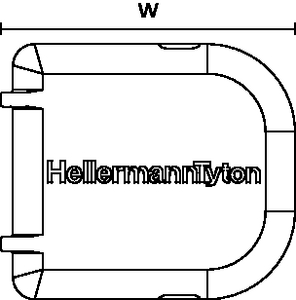

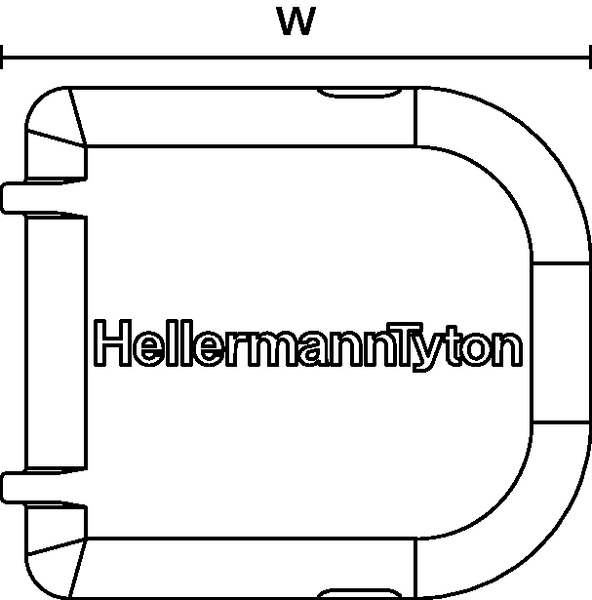

    Width (W) 21.2mm
    ELV compliant Dir. Art. 4 (2) YES
    Hazardous Goods No
    ROHS compliant Yes
    Specifications
    Country of Origin PL
    Customs Number 39269097
    GTIN-13 / EAN 4031026620121
    Packaging 1 - Height (m) 0.8m
    Packaging 1 - Length (m) 0.6m
    Packaging 1 - Qty 2000
    Packaging 1 - Type Bag
    Packaging 1 - Volume (m³) 0.192m³
    Packaging 1 - Weight (kg) 10.825411kg
    Packaging 1 - Width (m) 0.4m
    Packaging 3 - Height (m) 0.204m
    Packaging 3 - Length (m) 0.591m
    Packaging 3 - Qty 2000
    Packaging 3 - Type Box
    Packaging 3 - Volume (m³) 0.048m³
    Packaging 3 - Weight (kg) 11.475411kg
    Packaging 3 - Width (m) 0.398m
    Packaging 4 - Height (m) 1.164m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 40000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.117m³
    Packaging 4 - Weight (kg) 250.5kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000127
    ETIM 8.0 Key EC000127
    ETIM 9.0 Key EC000127
    UNSPSC Key 39121702
