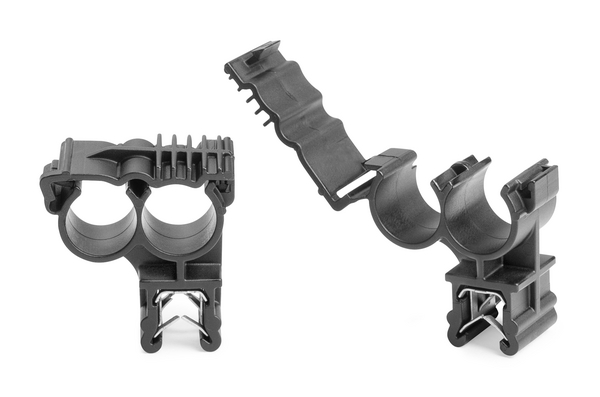

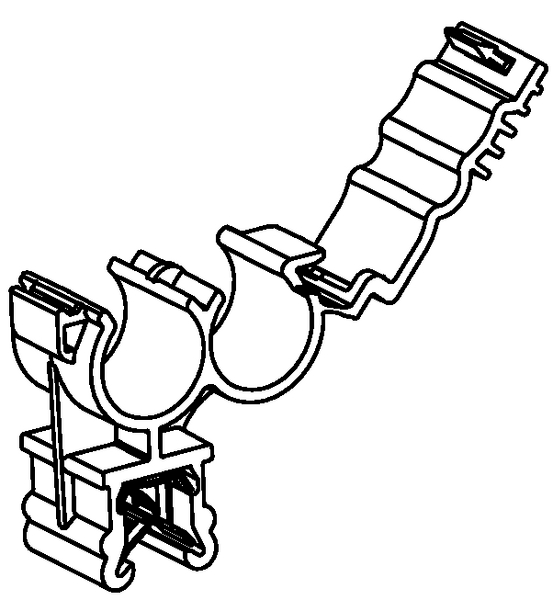

Cable clip for edge/with pipe/tube holder, T=3.0 - 6.0mm, Dmin=11.8mm, Dmax=12.4mm, nom∅=11.8 - 12.4 mm, nom∅2=11.8 - 12.4 mm
Art.-No. 151-04199 | DLOC12EC3-6TP-PA66HIRHS-BK Details

Request your individual offer now

Cable ∅ max 12.4mm
Cable ∅ min 11.8mm
Colour Black (BK)
Fixation Method EdgeClip, top
Key product features for multiple routing, for direct fixation, lockable, releasable, reusable
Local order number DLOC12EC3-6TP-PA66HIRHS-BK
Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
PART DESCRIPTION DLOC12EC3-6TP-PA66HIRHS-BK
Pack Cont. 300pcs.
Package Content packed in Bag
Type DLOC12EC3-6TP
Bundle Diameter Nom. (ND) 11.8 - 12.4 mm
Bundle Diameter Nom. 2 (ND2) 11.8 - 12.4 mm
Bundle Diameter max (metric) 12.4mm
Bundle ∅ 11.8-12.4mm
Bundle ∅ min. 11.8mm
Height (H) 33.0mm
Length (L) 32.2mm
Panel Thickness max. 3.0 - 6.0mm
Weight/Unit 0.004533kg
for Panel Thickness min - max 3 - 6 mm
ELV compliant Dir. Art. 4 (2) YES
Halogen-free Yes
Hazardous Goods No
ROHS compliant Yes
Specifications
Country of Origin PL
Customs Number 39269097
GTIN-13 / EAN 4031026741178
Packaging 1 - Height (m) 0.105m
Packaging 1 - Length (m) 0.43m
Packaging 1 - Qty 300
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.01422
Packaging 1 - Weight (kg) 1.381715kg
Packaging 1 - Width (m) 0.315m
Packaging 3 - Height (m) 0.204m
Packaging 3 - Length (m) 0.591m
Packaging 3 - Qty 1200
Packaging 3 - Type Box
Packaging 3 - Volume (m³) 0.048
Packaging 3 - Weight (kg) 6.17686kg
Packaging 3 - Width (m) 0.398m
Packaging 4 - Height (m) 1.164m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 24000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.117
Packaging 4 - Weight (kg) 144.552kg
Packaging 4 - Width (m) 0.8m
ETIM 7.0 Key EC000127
ETIM 8.0 Key EC000127
ETIM 9.0 Key EC000127
UNSPSC Key 39121702
