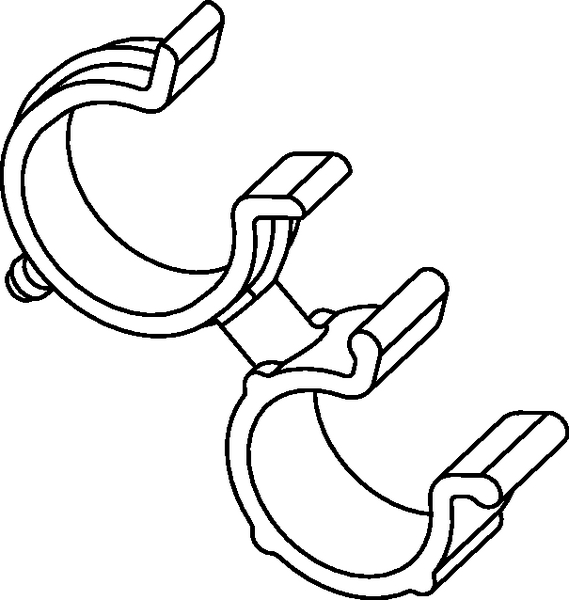

Cable clip with pipe/tube holder
Art.-No. 156-01314 | DTC18x18-20-S-PA66HIRHS-BK |  Details

DTCs for easy assembly of rotatable routed tubes and harnesses.

    • Fixing clip offers full 360° rotation
    • For routing of two different bundles
    • Simply clip on a wire or hose
    • Suitable for post-installation of bundles
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Application These pipe clips interconnect two different bundles of goods, of various size and type. The mobility of the fixing tie provides even in difficult conditions, such as vibrations, a secure grip and protects the cables or bundles.
    Colour Black (BK)
    Fixation Method Omega Clip
    Key product features rotatable, for multiple routing, removable
    Local order number OC18-OC18-20-HIRHS-BK
    Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    PART DESCRIPTION DTC18x18-20-S-PA66HIRHS-BK
    Pack Cont. 500pcs.
    Package Content packed in Bag
    Product Family DTC - Double Tube Clip, rotatable 360°
    Product Group Fixing elements for tubes and harnesses
    Short Description Pipe clip 18x18-20-S high impact modified, heat stabilised, black
    Type DTC18x18-20-S
    Attach to Ø 18.0, 18.0 - 20.0

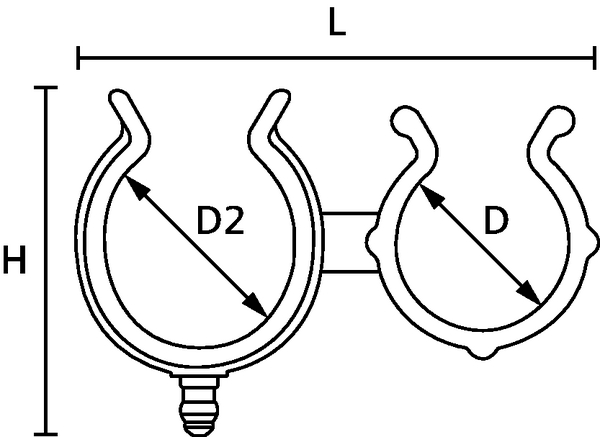

    Diameter (D) 18.0mm
    Height (H) 35.6mm
    Length (L) 54.0mm
    Weight/Unit 0.003292kg

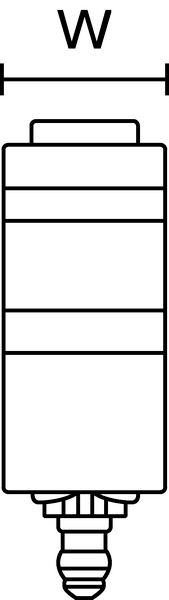

    Width (W) 12.0mm
    ∅ (D2) 20.0mm
    ELV compliant Dir. Art. 4 (2) YES
    Hazardous Goods No
    ROHS compliant Yes
    Specifications
    Country of Origin CN
    Customs Number 39269097
    GTIN-13 / EAN 4031026492100
    Packaging 1 - Height (m) 0.1m
    Packaging 1 - Length (m) 0.32m
    Packaging 1 - Qty 500
    Packaging 1 - Type Bag
    Packaging 1 - Volume (m³) 0.00976m³
    Packaging 1 - Weight (kg) 1.646kg
    Packaging 1 - Width (m) 0.305m
    Packaging 3 - Height (m) 0.36m
    Packaging 3 - Length (m) 0.59m
    Packaging 3 - Qty 3000
    Packaging 3 - Type Box
    Packaging 3 - Volume (m³) 0.0828m³
    Packaging 3 - Weight (kg) 10.531kg
    Packaging 3 - Width (m) 0.39m
    Packaging 4 - Height (m) 1.224m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 36000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.175m³
    Packaging 4 - Weight (kg) 147.372kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000127
    ETIM 8.0 Key EC000127
    ETIM 9.0 Key EC000127
    UNSPSC Key 39121702
