Cable clip for edge, T=1.0 - 3.0mm, Dmin=6.5mm, Dmax=8.5mm
Art.-No. 151-02993 | EC1-3TL7OTP-PA66HIRHS-BK |  Details

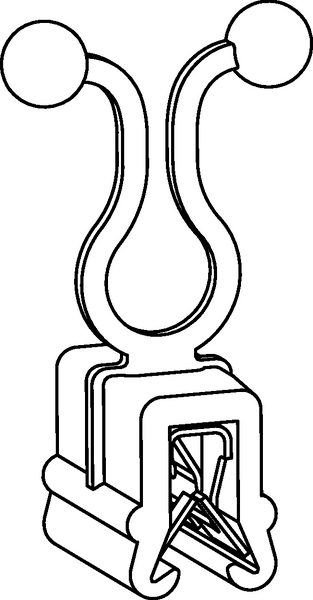

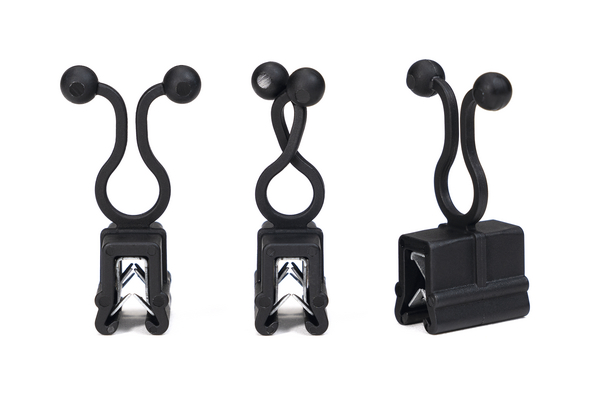

EdgeClip with Twist Lock.

    • Simply push per hand onto a plastic edge
    • simply twist to secure cables, and untwist for easy removals or additions
    • One twist has up to 20 N of tensile strength, for safe and secure fastening
    • Rounded edges protect cables and fingers from cuts and abrasions
    • For edges of 1-3 mm
    • Integrated metal clamp holds clip firmly in place
    • Clamp consists of double tempered spring steel
    • Ideal for applications where holes or adhesives are not suitable
    Show more
    Package size
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads Datasheet
    Colour Black (BK)
    Fixation Method EdgeClip, top
    Local order number EC1-3TL7OTP-PA66HIHRS-BK
    Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    PART DESCRIPTION EC1-3TL7OTP-PA66HIRHS-BK
    Pack Cont. 25pcs.
    Package Content packed in Bag
    Product Group EdgeClip with TwistLock for cables 6.5 - 8.5 mm
    Type EC1-3TL7OTP
    Attach to Ø 6.5 - 8.5
    Bundle Diameter max (metric) 8.5mm
    Bundle ∅ 6.5-8.5mm
    Bundle ∅ min. 6.5mm
    Height (H) 11.9mm
    Height (H2) 33.15mm
    Length (L) 15.0mm
    Panel Thickness max. 1.0 - 3.0mm
    Weight/Unit 0.0016kg
    Width (W) 9.2mm
    for Panel Thickness min - max 1 - 3 mm
    ELV compliant Dir. Art. 4 (2) YES
    Hazardous Goods No
    Operating Temperature -40 °C to +105 °C, (+105 °C for 500 h)
    ROHS compliant Yes
    Specifications
    Country of Origin PL
    Customs Number 39269097
    GTIN-13 / EAN 4031026626246
    Packaging 1 - Height (m) 0.04m
    Packaging 1 - Length (m) 0.12m
    Packaging 1 - Qty 25
    Packaging 1 - Type Bag
    Packaging 1 - Volume (m³) 0.00127m³
    Packaging 1 - Weight (kg) 0.045526kg
    Packaging 1 - Width (m) 0.265m
    Packaging 3 - Height (m) 0.17m
    Packaging 3 - Length (m) 0.288m
    Packaging 3 - Qty 1000
    Packaging 3 - Type Box
    Packaging 3 - Volume (m³) 0.0087m³
    Packaging 3 - Weight (kg) 1.95104kg
    Packaging 3 - Width (m) 0.178m
    Packaging 4 - Height (m) 1.164m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 102000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.117m³
    Packaging 4 - Weight (kg) 221.94kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000127
    ETIM 8.0 Key EC000127
    ETIM 9.0 Key EC000127
    UNSPSC Key 39121702
