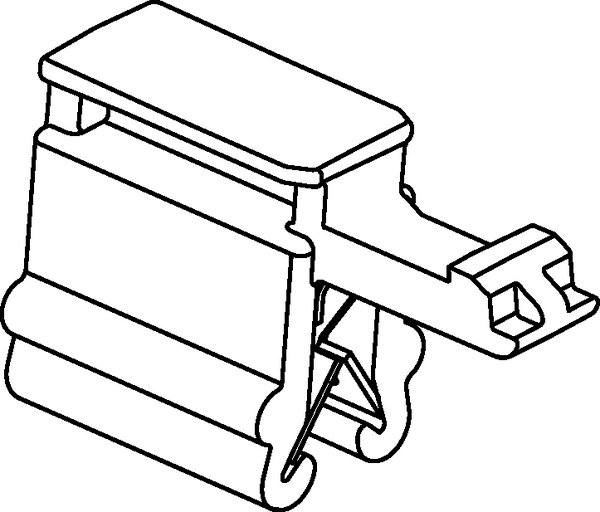

Connector clip, EWCAP-005-7, black, 1500pcs.
Art.-No. 151-03173 | EWCAP7EC1-3OTP-PA66HIRHS-BK |  Details

    • Simply push per hand onto a plastic edge
    • Connector easily installed by simply pushing into place
    • Connection can be released (non-destructive)
    • Integrated metal clamp holds clip firmly in place
    • Clamp consists of double tempered spring steel
    • Ideal for applications where holes or adhesives are not suitable
    Show more
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads Datasheet
    Colour Black (BK)
    Foot Part Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    PART DESCRIPTION EWCAP7EC1-3OTP-PA66HIRHS-BK
    Pack Cont. 1500pcs.
    Package Content packed in Bag
    Type EWCAP7EC1-3OTP
    Type of connection USCAR7
    Height (H) 15.4mm
    Length (L) 24.15mm
    Length (L2) 14.0mm
    Panel Thickness max. 1.0 - 3.0mm
    Weight/Unit 0.001616kg
    Width (W) 10.2mm
    for Panel Thickness min - max 1 - 3 mm
    ELV compliant Dir. Art. 4 (2) YES
    Hazardous Goods No
    ROHS compliant Yes
    Specifications
    Country of Origin DE
    Customs Number 39269097
    GTIN-13 / EAN 4031026640655
    Packaging 1 - Height (m) 0.06m
    Packaging 1 - Length (m) 0.38m
    Packaging 1 - Qty 1500
    Packaging 1 - Type Bag
    Packaging 1 - Volume (m³) 0.00616m³
    Packaging 1 - Weight (kg) 2.445815kg
    Packaging 1 - Width (m) 0.27m
    Packaging 3 - Height (m) 0.184m
    Packaging 3 - Length (m) 0.58m
    Packaging 3 - Qty 7500
    Packaging 3 - Type Box
    Packaging 3 - Volume (m³) 0.0406m³
    Packaging 3 - Weight (kg) 12.829075kg
    Packaging 3 - Width (m) 0.38m
    Packaging 4 - Height (m) 1.248m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 180000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.198m³
    Packaging 4 - Weight (kg) 328.92kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000127
    ETIM 8.0 Key EC000127
    ETIM 9.0 Key EC000127
    UNSPSC Key 39121702
