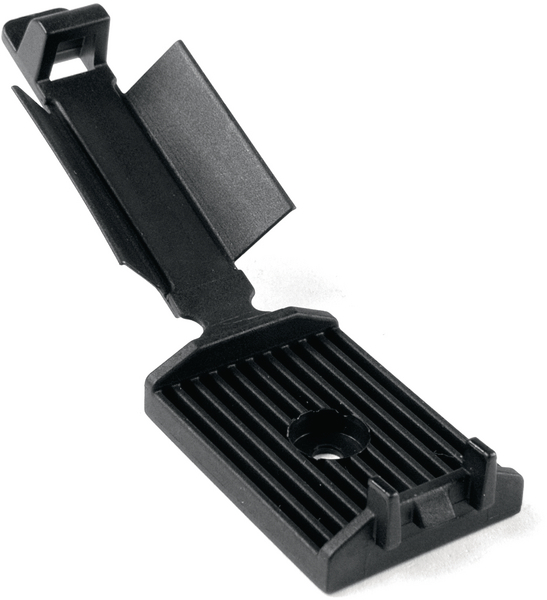

Cable clip for adhesive use, ∅3.1 mm
Art.-No. 151-00087 | FKH30A-PA66-BK |  Details

FKH30 mounts are designed to retain flat ribbon cables.

    • One-piece fixing mount for flat ribbon and round cables
    • Increased mounting area ensures proper bonding
    • Quick and easy installation
    • Can be released and re-used easily
    • Cable is gently fastened due to soft wings
    Show more
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads Datasheet
    Application These clips are ideal for use in applications which are difficult to access, or for areas where a self adhesive solution is the only possible fixing method (for example 'holes' would be unacceptable). The FKH clips are designed to retain flat ribbon cables - ideal for use in computer equipment, gaming machines and domestic appliances. Available as a self-adhesive mount or screw mount.
    Colour Black (BK)
    Fixation Method Pasting / Stick
    Key product features for multiple routing
    Local order number FKH30A.NB3P
    Material Polyamide 6.6 (PA66)
    PART DESCRIPTION FKH30A-PA66-BK
    Pack Cont. 100pcs.
    Package Content packed in Bag
    Product Family FKH-Series, self-adhesive
    Product Group Flat ribbon and round cable mounts
    Type FKH30A
    Variant Mounting clip
    Attach to Ø 30.0
    For Cable Width max. 30.0mm
    Length (L) 35.0mm
    Width (W) 25.0mm
    Width (W2) 22.0mm
    for Hole ∅ (FH) 3.1 mm
    Adhesive Acrylate with base of polyurethane foam
    ROHS compliant Yes
    Specifications
    UV-Stabilised No
    Country of Origin DE
    ETIM 7.0 Key EC000449
    ETIM 8.0 Key EC000449
    ETIM 9.0 Key EC000449
    UNSPSC Key 39121702
