Only useable with 133-07030 (Frame Clamp S)

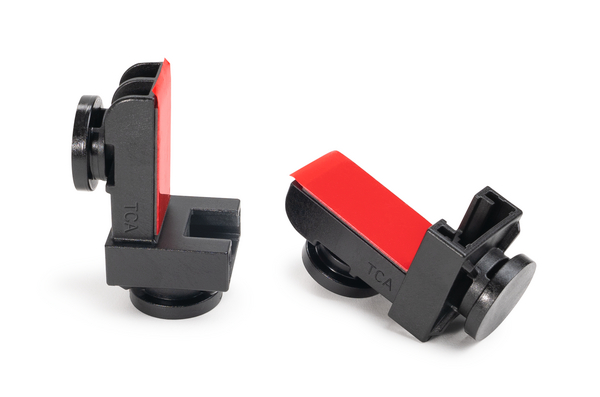

Frame Clamp B (Base)-PA6GF15-BK
Art.-No. 133-07029 | Frame Clamp B (Base)-PA6GF15-BK |  Details

    • For edges 6 - 17 mm
    • for cables ties up to 8.3 mm width
    • Recording suitable for Fixing SFTP
    • For multible routing
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads Datasheet
    Application Our Frame Clamp is useable for edges 6 - 17 mm. You can use this mount with cable ties or with the Fixing SFTP to route cables or harnesses. This article is perfectly made for heavy duty applications. With our EVO9 cable tie tool is the application very easy. The EVO9 tool ensures that the same tightening force is used each time the component is fitted, and the high-performance adhesive also supports the very good fit of the Frame Clamp.
    Colour Black (BK)
    Fixation Method Edge Clips without metal insert
    Internet Customer Notice Only useable with 133-07030 (Frame Clamp S)
    Material Polyamide 6, glass-fibre reinforced (PA6GF15)
    PART DESCRIPTION Frame Clamp B (Base)-PA6GF15-BK
    Pack Cont. 80
    Package Content packed in Bag
    Type Frame Clamp B (Base)
    Height (H) 61.6mm
    Length (L) 31.0mm
    Panel Thickness max. 6.0 - 17.0mm
    Weight/Unit 0.019145kg
    Width (W) 28.0mm
    for Panel Thickness min - max 6 - 17 mm
    ELV compliant Dir. Art. 4 (2) YES
    Hazardous Goods No
    Operating Temperature -40 °C to +90 °C
    ROHS compliant Yes
    Specifications
    Country of Origin PL
    Customs Number 39269097
    GTIN-13 / EAN 4031026658902
    Packaging 1 - Qty 80
    Packaging 1 - Type Bag
    Packaging 1 - Weight (kg) 1.568957kg
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Type pallet
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000127
    ETIM 8.0 Key EC000127
    ETIM 9.0 Key EC000127
    UNSPSC Key 39121702
