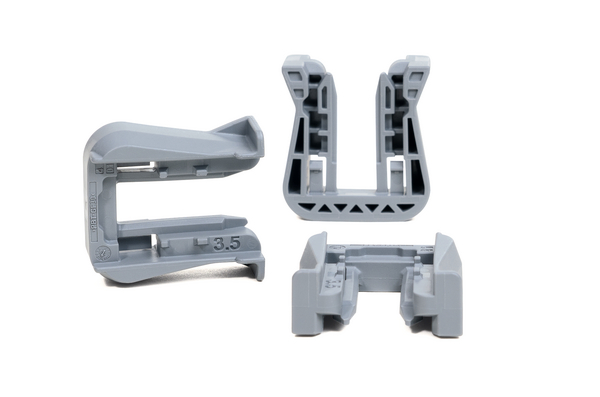

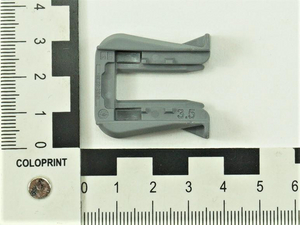

Fixing slider for connectors, T=3.5mm, grey, 2200pcs.
Art.-No. 151-02352 | FSA3.5-PBTGF30FR-GY |  Details

Fixing Slider

    • Color coding for panel thickness: red (2.5 mm), yellow (3.0 mm), grey (1.5 mm and 3.5mm), natural (1.0 mm and 1.5 mm)
    • Panel thickness is marked on the slider
    • Permanent fixation of the connectors in the mounting hole by using the slider
    • These parts are also available in V0 material (flame retardent) e.g. for public transport
    • Fixing slider fit for the Aptiv connector XS and SP series
    Show more
    Package size
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Application The slider is used to keep the plugs firmly and vibration-proof in place, even when movement acts on it.
    Colour Grey (GY)
    Local order number FSD1.5 PBTGF30 GY
    Material Polybutylene Terephthalate glass-fibre reinforced, flame retardant (PBTGF30FR)
    PART DESCRIPTION FSA3.5-PBTGF30FR-GY
    Pack Cont. 2200pcs.

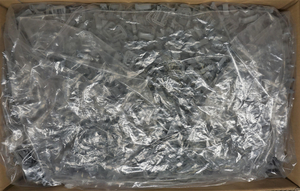

    Package Content packed in Bag
    Product Family Fixing Slider A, 3.5 mm CTCS-series
    Product Group Connector Accessory Fixing Slider, Group A
    Type FSA3.5
    Height (H) 12.15mm
    Length (L) 32.0mm
    Panel Thickness max. 3.5mm
    Weight/Unit 0.0049kg
    Width (W) 30.0mm
    Width (W2) 8.1mm
    ELV compliant Dir. Art. 4 (2) YES
    Hazardous Goods No
    ROHS compliant Yes
    Specifications
    Country of Origin PL
    Customs Number 39269097
    GTIN-13 / EAN 4031026606415
    Packaging 1 - Height (m) 0.8m
    Packaging 1 - Length (m) 0.6m
    Packaging 1 - Qty 2200
    Packaging 1 - Type Bag
    Packaging 1 - Volume (m³) 0.192m³
    Packaging 1 - Weight (kg) 10.845411kg
    Packaging 1 - Width (m) 0.4m
    Packaging 3 - Height (m) 0.184m
    Packaging 3 - Length (m) 0.58m
    Packaging 3 - Qty 2200
    Packaging 3 - Type Box
    Packaging 3 - Volume (m³) 0.0406m³
    Packaging 3 - Weight (kg) 11.445411kg
    Packaging 3 - Width (m) 0.38m
    Packaging 4 - Height (m) 1.248m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 52800
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.198m³
    Packaging 4 - Weight (kg) 295.68kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000127
    ETIM 8.0 Key EC000127
    ETIM 9.0 Key EC000127
    UNSPSC Key 39121702
