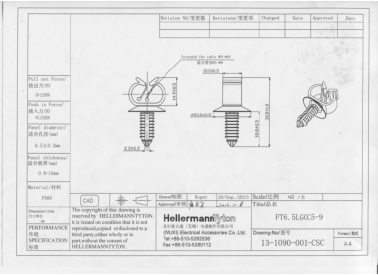

Cable clip, T=0.8 - 10.0mm, ∅6.3 - 7.0 mm
Art.-No. 151-01271 | FT6.5LGOC5-9-PA66HIRHS-BK |  Details

    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads Datasheet
    Colour Black (BK)
    Local order number FT6.5LGOC5-9
    Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    PART DESCRIPTION FT6.5LGOC5-9-PA66HIRHS-BK
    Pack Cont. 250pcs.
    Package Content packed in Bag
    Product Family With Fir Tree
    Product Group Fixing Elements for Tubes and Harnesses
    Type FT6.5LGOC5-9
    Attach to Ø 5.0 - 9.0
    Height (H) 36.8mm
    Length (L) 36.8mm
    Panel Thickness max. 0.8 - 10.0mm
    for Hole ∅ (FH) 6.3 - 7.0 mm
    for Panel Thickness min - max 0.8 - 10 mm
    Operating Temperature -40 °C to +105 °C, (+105 °C for 500 h)
    Country of Origin CN
    GTIN-13 / EAN 4031026482774
    ETIM 7.0 Key EC000464
    ETIM 8.0 Key EC000464
    ETIM 9.0 Key EC000464
    UNSPSC Key 39121702
